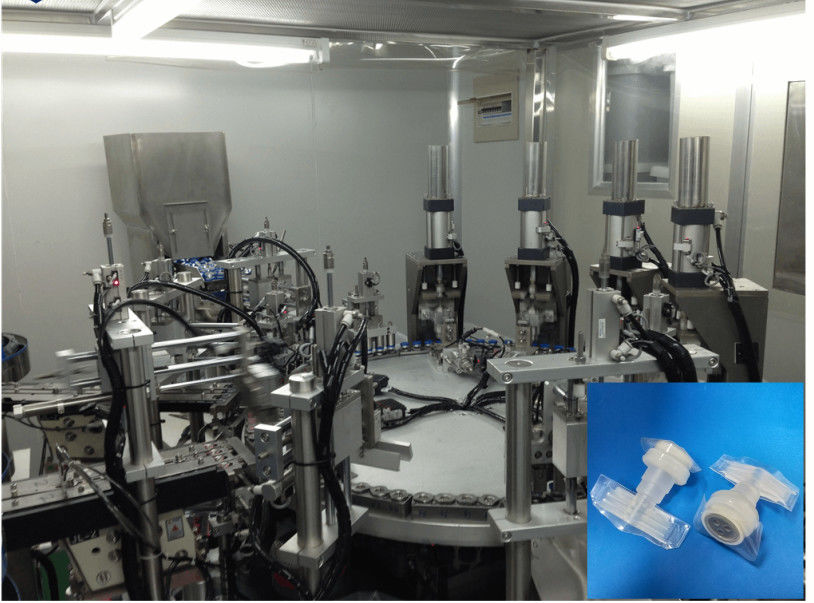

IV soft bag caps and ports welding machine

Large Image : IV soft bag caps and ports welding machine

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE, ISO 9001
Model Number:	SC-TP-525

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate according to the actual situation
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	L/C,T/T
Supply Ability:	3 sets

Contact Now

Detailed Product Description

Country Of Origin:	China	Driver:	Servo Motor + Indexing Drive
Mechanism:	Servo	Usage:	Medical Product Assembly
Packing:	Wooden Case	Certifications:	CE, ISO 9001
Material:	Stainless Steel	Active Force:	Servo Moter
Operation:	About 95%	Frequency:	50Hz
Qualified Product Rate:	Above 99%	Power Source:	Electricity
Qualified Rate:	98%	Power Supply:	220V/50Hz
Assembly Types:	Syringes, IV Bags Caps

Features

1. Automatic assembly of IV soft bag caps and ports welding machine.

2. Main power servo motor + cam indexing drive, which provide accurate assembly position and high quality accuracy.

3. Each assembly process is followed by detection function to ensure high qualified rate of assembly products.

4. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenence personals.

5. All driving and inspection systems made from outstanding international suppliers

6. All materials of the equipment are made of stainless steel + aluminum alloy, in line with clean room requirements and GMP standards.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

Properties

Applicable products	Nasal swab, nasal collector, nasal sampler
Production speed	2500-8000pph
Rate of qualified product	Above 98%
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz,5kw/h, air pressure 7kg/m³
dimension	Actual size varied with production speed
weight	About 2850kg
operator	1set/person
