Surgical Knife Automatic Assembly Machine

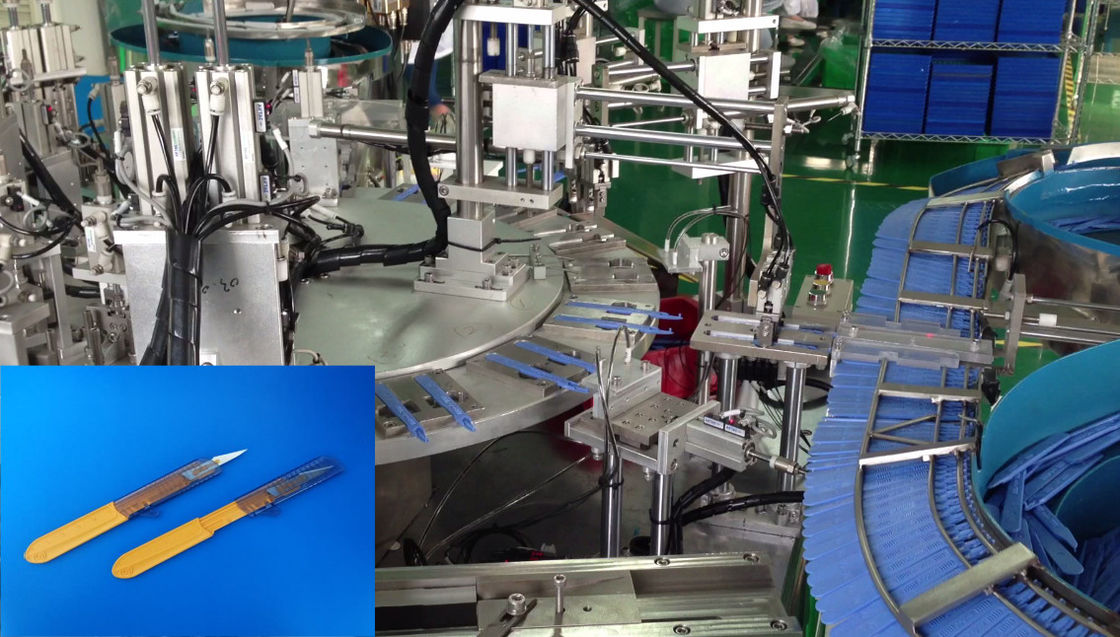

Large Image : Surgical Knife Automatic Assembly Machine

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE, ISO9001
Model Number:	SC-TP-732

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate according to actual situation
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	T/T,L/C
Supply Ability:	3 sets

Contact Now

Detailed Product Description

Material:	Stainless Steel	Type:	Turntable
Frequency:	50Hz	Suitable Products:	Surgical Knife
Operator:	Single Or Double	Driver:	Servo Motor + Indexing Drive
Country Of Origin:	China	Usage:	Assembly Of Medical Products
Operation Mode:	Touch Screen	Automation Grade:	Automatic
Product Type:	Infusion Dropper	Packing:	Wooden Case
Colour:	Stainless Steel Metallic Color	Operating Mode:	Automatic
Origin:	China

Features

1. Used for automatic assembly and packaging of disposable scalpel and surgical knife.

2. Main power servo motor + indexing drive, which provide accurate assembly position and high quality accuracy.

3. Blade feeding with vacuum adsorption to reduce wearing of blade during processing.

4. Knife handle pad breaks automatically on machine, then assembled by welding.

5. Each assembly process is followed by detection function to ensure high qualified rate of assembly products.

6. Automatic counting function for production statistics.

7. Good and reject products exit independently for 100% qualified products with no defects.

8. PLC control system, touch screen HMI display, errors of reason and location can be accurately displayed.

Properties

Applicable products	Disposable surgical knife, scalpel(blade,handle,sleeve)
Production speed	1500-8500pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 98%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2800kg
Operator	1set/person
