Heli cap 3 Parts Product Assembly Machine

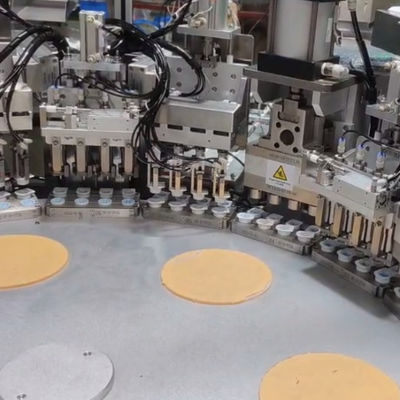

Large Image : Heli cap 3 Parts Product Assembly Machine

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE, ISO9001
Model Number:	SC-TP-638

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate the price according to actual situation
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	T/T,L/C
Supply Ability:	3 sets

Contact Now

Detailed Product Description

Applicable Products:	Heli Cap For Milk	Warranty:	1 Year
Material:	Stainless Steel	Operation Mode:	Automatic
Active Force:	Servo Moter+ Reducer	Operating Interface:	Touch Screen
Main Power:	Servo Motor	Warranty Period:	1 Year
Product Capacity:	4000-12000 Caps Per Hour	Speed Adjustment:	Frequency Conversion
Suitable Cap Types:	Plastic Caps, Metal Caps, Screw Caps	Operator:	Single Or Double
Packing:	Wooden Case	Safety Device:	Emergency Stop Button
Power Source:	AC380V,50Hz,4kw/hr

Features

1. Turntable or loop production line on customer's actual capacity.
2. Main power comes from servo motor + reducer, which makes intermittent motion providing static fixtures for accurate assembly during processing, achieving high rate of qualified product.
3. Equipped with automatic detection function, following each assembly process, to achieve 100% qualified products.
4. All materials are made of stainless steel and aluminum alloy, in compliance with GMP requirements.
5. Equipped with automatic orientation function, avoid jam between screw and teeth, reduce defection during insertion, ensure correctness of assembly.
6. Torque test can be added inline.
7. Automatic pressing or tightening can be realized according to the product structure.
8. PLC control system, touch screen human-machine interface operation.
9. Simple maintenance and convenient operation. Low requirement for Operator's technical ability. Spare parts replacement time short.

Properties

Applicable products: Helicap, 3 parts caps closures requiring orientation and screwing assembly

Production speed: 3000-12000pcs/hr (according to customer’s requirement)

Rate of qualified product: Above 99%(depends on raw material quality)

Rate of operation rate: Above 95%

Power source: AC380V, 50Hz, 4kw/hr

Dimension: Actual size varied with different production speed

Weight: About 2850kg

Operator: 1set/person

Properties

Applicable products	Helicap, 3 parts caps requiring orientation and screwing assembly
Production speed	3000-12000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%(depends on raw material quality)
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2850kg
Operator	1set/person
