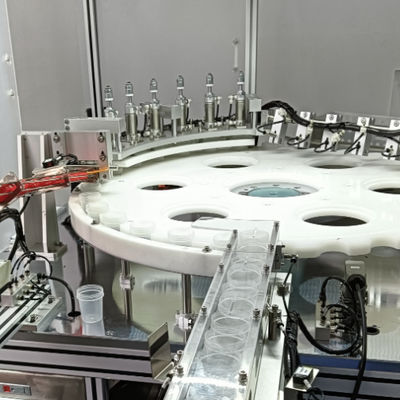

Medical Product Assembly Machine for Customizable Rotary or Loop Type with and Performance

Large Image : Medical Product Assembly Machine for Customizable Rotary or Loop Type with and Performance

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE, ISO9001
Model Number:	SC-TP-632

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate the price according to actual situation
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	T/T,L/C
Supply Ability:	3 sets

Contact Now

Detailed Product Description

Voltage:	220V	Type:	Automatic
Control System:	PLC	Warranty:	1 Year
Capacity:	4500-10000	Installation:	On-site Installation And Training
Assembly Capacity:	Large Capacity	Automation Level:	Fully Automated

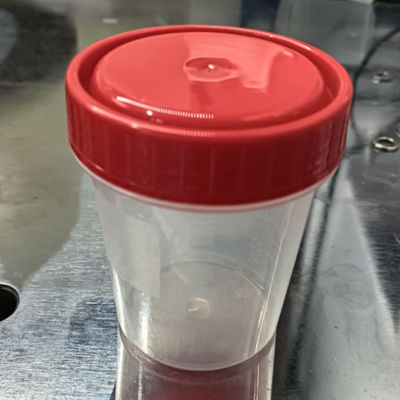

Operation Type:	Turetable/mechanical	Suitable Products:	Urine Sample Cup
Assembly Type:	Automatic	Certifications:	CE, ISO
After-Sales Service:	Online Support, Video Technical Support	Packing:	Wooden Case

Features

1. Customize rotary or loop type machine for customer’s capacity requirements.

2. Main power from servo motor + reducer unit, which provide intermittent motion and fixtures are in a static during assembling, high accuracy and qualified rate can be achieved.

3. Screw in place precisely, no twist angle and twist broken occur.

4. Does not destroy appearance of product, high qualified rate performed.

5. Option screw force detector for torque requirements.

6. Detection after each assembly process, 100% real qualified products.

7. All part made of stainless steel or aluminum alloy, in accordance with GMP requirements.

8. PLC control system, touch screen HMI operation.

9. Simple maintenance easy operation. No high technical requirement for Operator.

10. Easy maintenance of spare parts, short time replacement.

Properties

Applicable products	Parts require screw fasten assembling
Production speed	2500-10000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 98%(depend on semi-product quality)
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz, 3kw/hr
Dimension	Varied with different product and output
Weight	About 1500kg
Operator	1set/person
