Euro Cap Double Port Cap Assembly Machine AC380V 50Hz In Stainless Steel Material

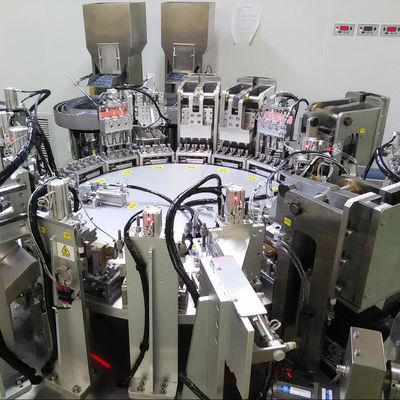

Euro Cap Double Port Cap Assembly Machine

Features

1. This machine is applied for automatic assembly of caps for plastic IV infusion soft bags and bottles

2. All materials of the machine are made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner caps are pressed by servo-linked rod mechanism with even and stable pressure of each position in each station, pressing quality of each product could be guaranteed.

6. Each assemble process is followed with inspection function to make sure there will be no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. The main power is composed of servo motor + indexing drive, with high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenence personals.

10. Highly customized according to customer's product specifications, actual capacity and production demand.

Properties
