Stainless Steel Heli Cap Assembly Machine PLC Control Bottle Cap Sealer Machine

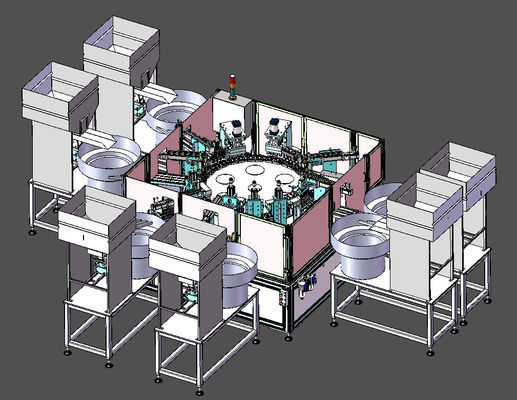

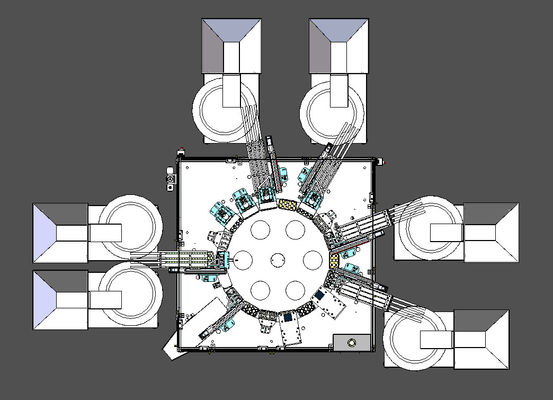

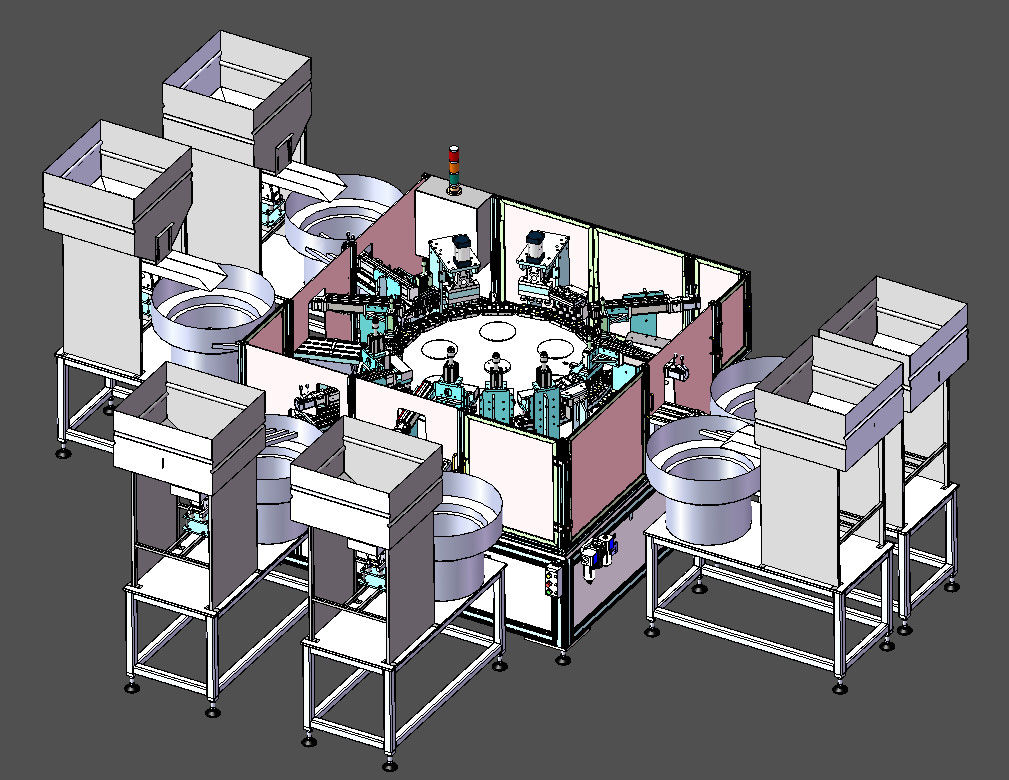

Large Image : Stainless Steel Heli Cap Assembly Machine PLC Control Bottle Cap Sealer Machine

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE
Model Number:	SC-PT-236

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Wooden case
Delivery Time:	90 Working days
Payment Terms:	L/C, T/T
Supply Ability:	3 set per month

Contact Now

Detailed Product Description

Features:	High Efficiency, Easy Operation, Stable Performance	Material:	Stainless Steel + Aluminium Alloy
Power Supply:	AC 220V/50Hz	Application:	Bottling And Packaging Industries
Warranty:	1 Year	Control System:	PLC Control
Suitable Cap Types:	Plastic Caps, Metal Caps, Screw Caps	Operation Mode:	Automatic
Highlight:	Stainless Steel Heli Cap Assembly Machine , PLC Control Bottle Cap Sealer Machine , PLC Control Heli Cap Assembly Machine

Assembly Machine For Precise Positioning Of HELI Lids For Milk Packaging

1. Turntable or loop production line on customer's actual capacity.

2. Main power comes from servo motor + reducer, which makes intermittent motion providing static fixtures for accurate assembly during processing, achieving high rate of qualified product.

3. Equipped with automatic detection function, following each assembly process, to achieve 100% qualified products.

4. All materials are made of stainless steel and aluminum alloy, in compliance with GMP requirements.

5. Equipped with automatic orientation function, avoid jam between screw and teeth, reduce defection during insertion, ensure correctness of assembly.

6. Torque test can be added inline.

7. Automatic pressing or tightening can be realized according to the product structure.

8. PLC control system, touch screen human-machine interface operation.

9. Simple maintenance and convenient operation. Low requirement for operator's technical ability. Spare parts replacement time short.

Applicable products	Helicap, products composed of 3 parts requiring orientation and screwing assembly
Production speed	3000-12000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%(depends on raw material quality)
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
dimension	Actual size varied with different production speed
weight	About 2850kg
operator	1set/person
