High Speed Euro Cap Assembly Machine For Infusion Bottle Cap , Such As Single Pull Cap Double Pull Cap Single Fold Cap Double Fold Cap And Break Caps

Large Image : High Speed Euro Cap Assembly Machine For Infusion Bottle Cap , Such As Single Pull Cap Double Pull Cap Single Fold Cap Double Fold Cap And Break Caps

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE
Model Number:	SC-PT-25

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Wooden case
Delivery Time:	90 Working days
Payment Terms:	L/C, T/T
Supply Ability:	3 set per month

Contact Now

Detailed Product Description

Cap Type:	Single Pull Ring Infusion Cap	Material:	Stainless Steel + Aluminium Alloy
Operation Mode:	Automatic	Control System:	PLC
Power Supply:	220V/50Hz	Warranty:	1 Year
Highlight:	Single Port Cap Assembly Machine , PLC Control System Cap Assembly Machine , PLC Control System Euro Cap Assembly Machine

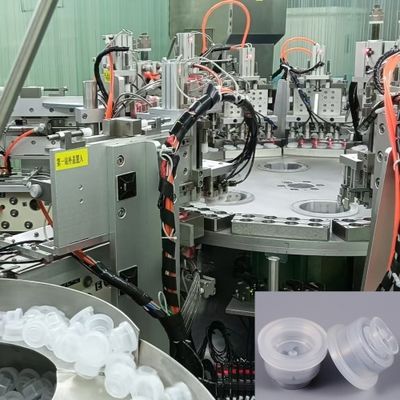

14,000 Per Hour Capacity Assembly Machine For European Caps With Single Pull Ring Caps

Features

1. This machine is applied for automatic assembly and ultrasonic welding of caps for plastic IV infusion soft bags and bottles.

2. All materials of the machine are made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner caps are pressed by servo-linked rod mechanism with even and stable pressure of each position in each station, pressing quality of each product could be guaranteed.

6. Each assemble process is followed with inspection function to make sure there will be no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. The main power is composed of servo motor + indexing drive, with high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenence personals.

10. Highly customized according to customer's product specifications, actual capacity and production demand.

Properties

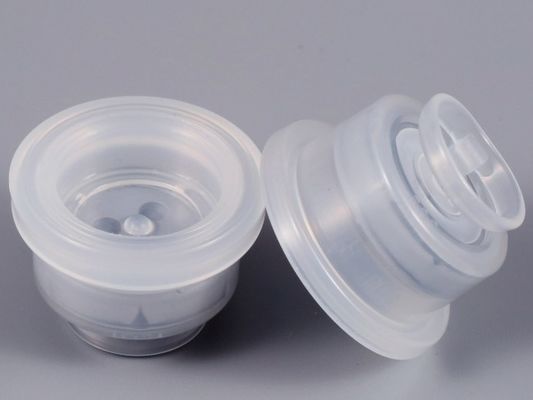

Applicable products	Single pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-14000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
dimension	Actual size varied with different production speed
weight	About 2300kg
operator	3sets/2persons,recommend 1set/person
