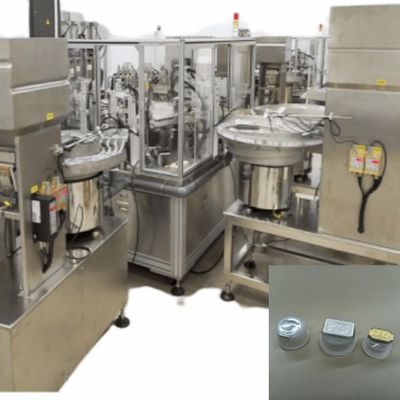

Fully Automatic PE PP Infusion Peel-Foil Cap Assembly Machine With Servo Motor And Indexing Drive

Large Image : Fully Automatic PE PP Infusion Peel-Foil Cap Assembly Machine With Servo Motor And Indexing Drive

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE
Model Number:	SC-PT-25

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Wooden case
Delivery Time:	90 Working days
Payment Terms:	L/C, T/T
Supply Ability:	3 sets per month

Contact Now

Detailed Product Description

Application:	IV Infusion Peel-foil Infusion Cap Assembly Machine	Material:	Stainless Steel + Aluminium Alloy
Production Capacity:	4500-12000 Per/hour	Control System:	PLC
Operating Interface:	Touch Screen	Warranty:	1 Year
Highlight:	Euro Cap Assembly Machine OEM , OEM Injection Vial Filling Machine , PP Euro Cap Assembly Machine

IV Infusion Peel-foil Infusion Cap Assembly Machine With Automatic Video

Features

1. This machine is applied for automatic assembly of caps for plastic IV infusion soft bags and bottles

2. All materials of the machine are made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner caps are pressed by servo-linked rod mechanism with even and stable pressure of each position in each station, pressing quality of each product could be guaranteed.

6. Each assemble process is followed with inspection function to make sure there will be no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. The main power is composed of servo motor + indexing drive, with high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenence personals.

10. Highly customized according to customer's product specifications, actual capacity and production demand.

Properties

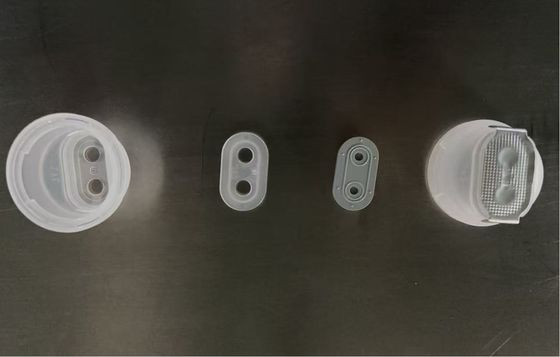

Applicable products	IV Infusion Peel-foil Infusion Cap
Production speed	1500-8500pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
dimension	Actual size varied with different production speed
weight	About 2000kg
operator	Recommend 1set/person
