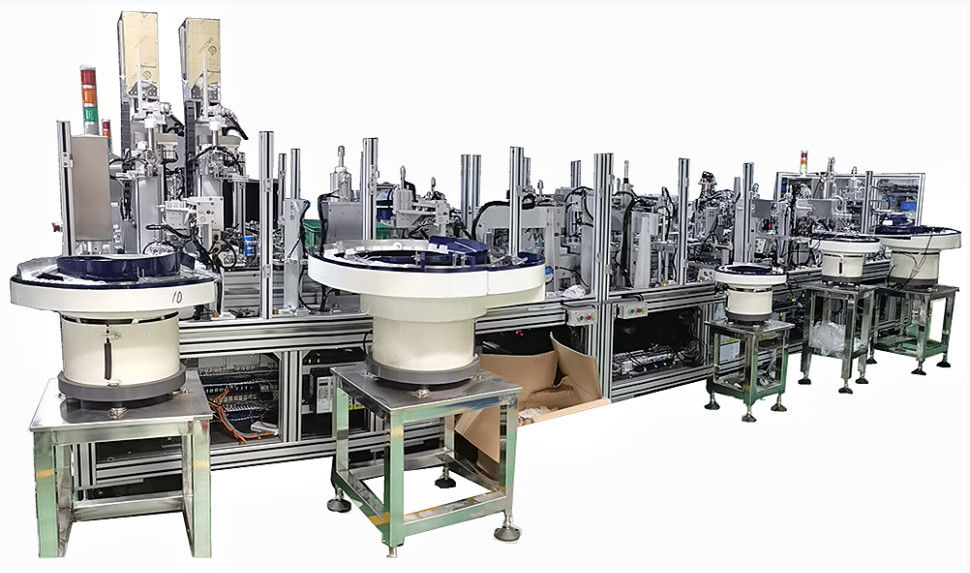

Cap Assembly rotary capping machine Custom With Linear Sliding Rail

Brand Name:	Sencan
Model Number:	SC-PT-513
MOQ:	1 set
Price:	Deliberation
Payment Terms:	T/T
Supply Ability:	3 sets per

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Control System:

PLC

Condition:

New

Capacity:

4500-22000 Per/hour

Using Scope:

Caps & Closures Assembly

Transmission Type:

Flexible

Operation:

Touch Screen

Product Type:

Automatic

Driven Type:

Electrical

Packaging Details:

wooden case

Highlight:

Rotary Capping Machine Custom

Cap Assembly Machine Rotary

Cap Assembly Rotary Capping Machine

Product Description

Highly Cap Assembly Machine With Linear Sliding Rail Conveying System And Precise Positioning

Features

1. Linear sliding rail conveying system will be applied and driven by servo motor to make intermittent movement, fixtures will be in a static state during assembly with precise positioning devices. Each workstation is equipped with a secondary positioning to improve qualified rate of product.

2. Manipulators of each station are independent, simple and easy for daily maintenance.

3. Manipulators are powered by cylinders, shorter time for spare parts change, simpler for debugging and maintenance.

4. The tube insertion process will be silicone oiled automatically, oil storage is 4L.

5. Enclosure for feeding plate can be equipped to reduce noise during production.

6. Each assembly process is followed by detection to ensure there will be no defective products in qualified products.

7. Whole equipment controlled by PLC system and touch screen operation.

Properties

Applicable products	lotion pump shampoo pump water sprayer trigger sprayer perfume pump spray nozzle
Production speed	1500-2500pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 98%
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz, 4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 3000kg
Operator	1set/person
