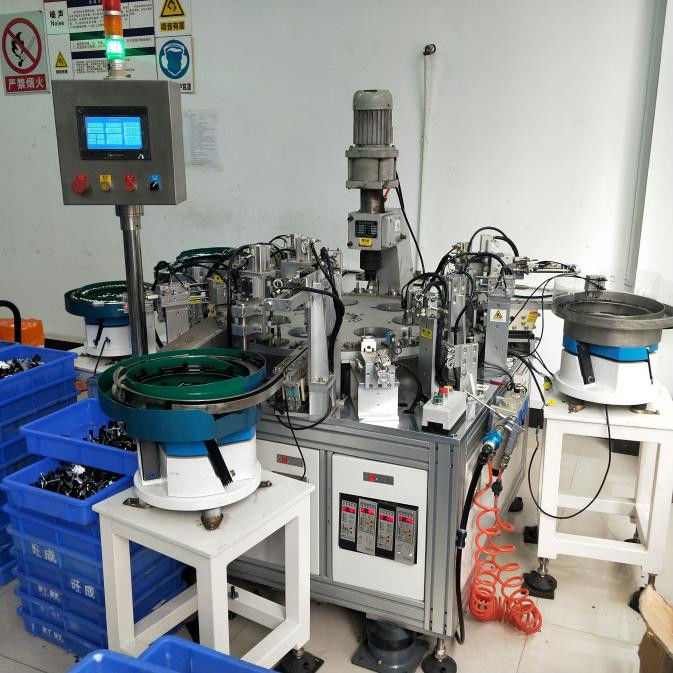

PLC Controlled Hardware Assembly Machine 220V Automatic Assembly Machine

Large Image : PLC Controlled Hardware Assembly Machine 220V Automatic Assembly Machine

Product Details:

Place of Origin:	China
Brand Name:	Sencan
Certification:	CE
Model Number:	SC-PT-514

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Deliberation
Packaging Details:	wooden case
Delivery Time:	90 work days
Payment Terms:	T/T
Supply Ability:	3 sets per

Contact Now

Detailed Product Description

Power Source:	Electricity	Capacity:	4500-22000 Per/hour
Model:	HW-AM-001	Operating Mode:	Automatic
Material:	Stainless Steel + Aluminium Alloy	Power Supply:	220V/50Hz
Warranty:	1 Year	Color:	Silver
Control System:	PLC
Highlight:	PLC Controlled Hardware Assembly Machine , PLC Controlled Automatic Assembly Machine , 220V Automatic Assembly Machine

Features

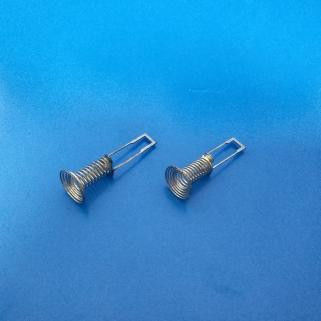

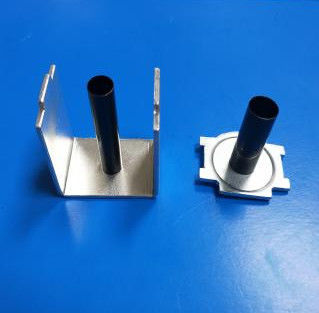

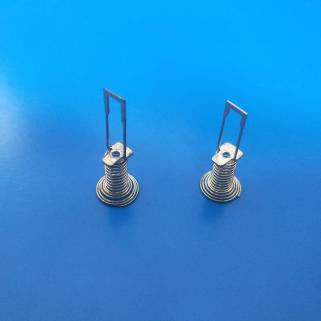

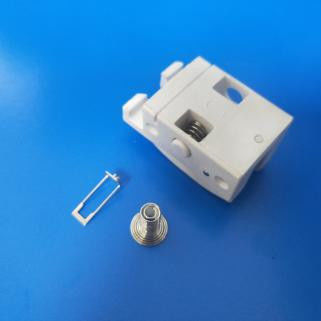

1. Automatic assembly for spare parts of home appliances, magnetic valves

2.Including rubber ring insertion, base valve core riveting, rotate screwing and other assembly processes.

3.Main power servo motor + indexing drive, which provide accurate assembly position and high quality accuracy.

4.Each assembly process is followed by detection function to ensure high qualified rate of assembly products.

5.Equipped with lancet eject and automatic reset functions for high rate of qualified product.

6. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenance personals.

7. Driving and inspection systems from international suppliers

8. All materials of the equipment are made of stainless steel + aluminum alloy, in line with GMP standards.

9. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

Properties

Applicable products	Spare parts of home appliances, magnetic valves
Production speed	1300-1500pph
Rate of qualified product	Above 98%
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz,3kw/h, air pressure 7kg/m3
dimension	Actual size varied with production speed
weight	About 1500kg
operator	1set/person
