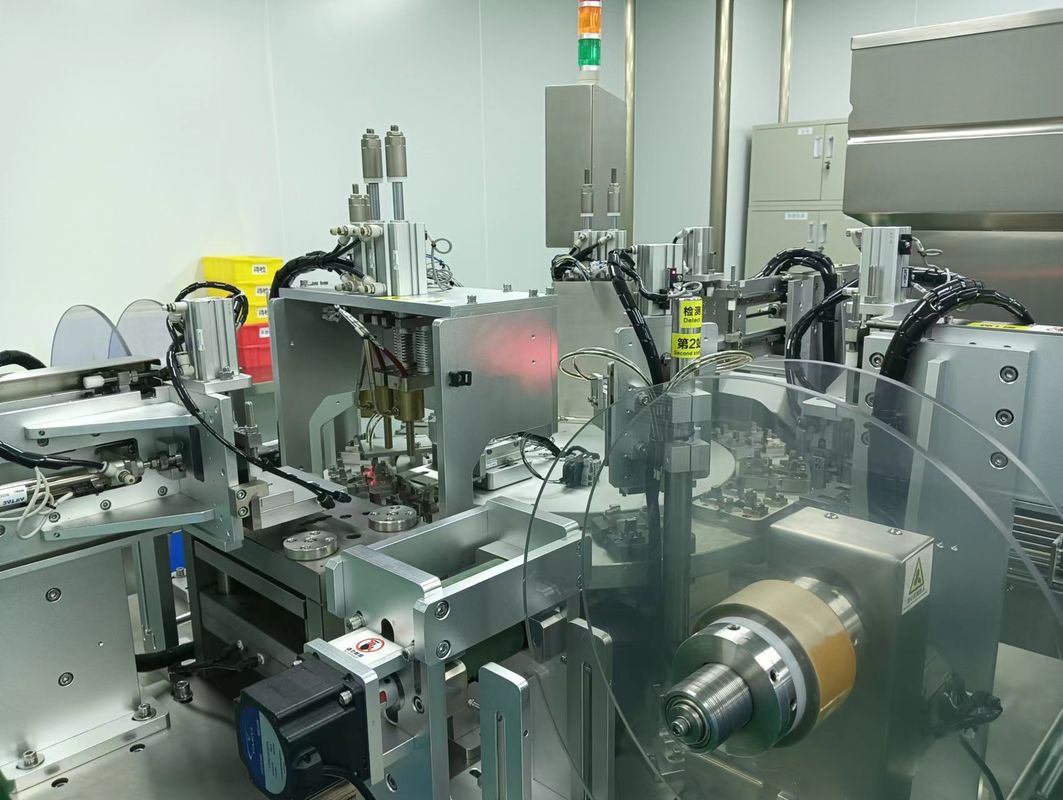

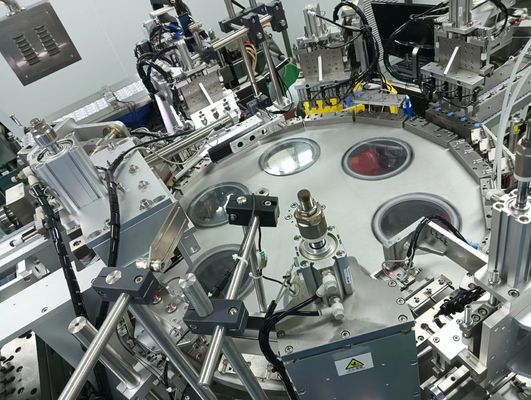

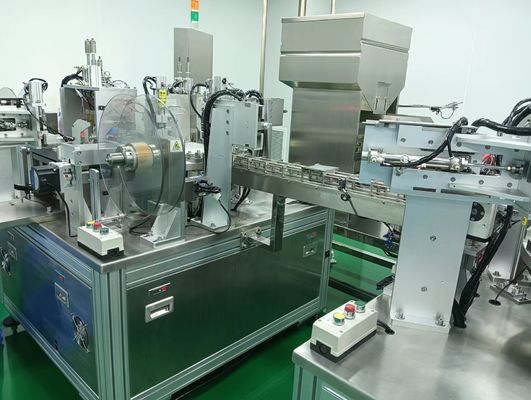

Metal Medical Assembly Machine Automated Electric Bottle Capping Machine

Brand Name:	Sencan
Model Number:	SC-P518
MOQ:	1 set
Price:	Deliberation
Payment Terms:	T/T
Supply Ability:	3 sets per

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Power Supply:

Electric

Type:

Assembly Machine

Application:

Medical Cap Product Assembly

Voltage:

220V

Capacity:

4500-22000 Per/hour

Control System:

PLC

Operating Mode:

Automatic

Material:

Stainless Steel + Aluminium Alloy

Packaging Details:

wooden case

Highlight:

Medical Assembly Machine Metal

Automated Medical Assembly Machine

Automated Electric Bottle Capping Machine

Product Description

Stainless Steel And Aluminum Alloy Components For Medical Product Assembly Machine

Features

1. Mostly employed in the automated construction of foil caps that are simple to peel off IV infusion soft bags and bottles.
2. In accordance with GMP guidelines, stainless steel and aluminum alloy are used to make all of the machine's components.
3. Each workstation has an own power supply, making regular maintenance easy.

4. To safeguard the product, the surface that comes into touch with it is polished.
5. Automatically cut and welded foil on a machine.
6. Every assembly procedure is accompanied by a check function to guarantee that the certified products are free of defects.

7. Human-machine interface operation and PLC control system. No advanced technical proficiency is required of the operator.
8. The primary power consists of an indexing drive and servo motor, both of which have excellent assembly precision and certified rate.
9. Pneumatic power requires less time for replacement and maintenance and does not require highly skilled technicians for maintenance personnel.
10. Highly tailored in accordance with the demands for production, real capacity, and product requirements from the customer.

Properties

Applicable products	Peel seal foil caps, foil seal closures and lids
Production speed	1500-8500pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2000kg
Operator	3sets/2persons,recommend 1set/person
