Infusion Cover Auto Assembly Machine Metal Cap Sealing Machine ODM

Brand Name:	SENCAN
Model Number:	SC-PT-765
MOQ:	1
Payment Terms:	L/C, T/T
Supply Ability:	3 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Automatic Production Line:

Caps And Closures Assembly Line Industry

Production Efficiency:

98%

Package:

Wooden Case

Capacity:

4500-22000 Caps Per Hour

Material:

Stainless Steel

Using Scope:

Caps & Closures Assembly

Automation:

Automation

Condition:

New

Packaging Details:

wooden case

Highlight:

on Cover Auto Assembly Machine

Infusion Cover Metal Cap Sealing Machine

ODM Auto Assembly Machine

Product Description

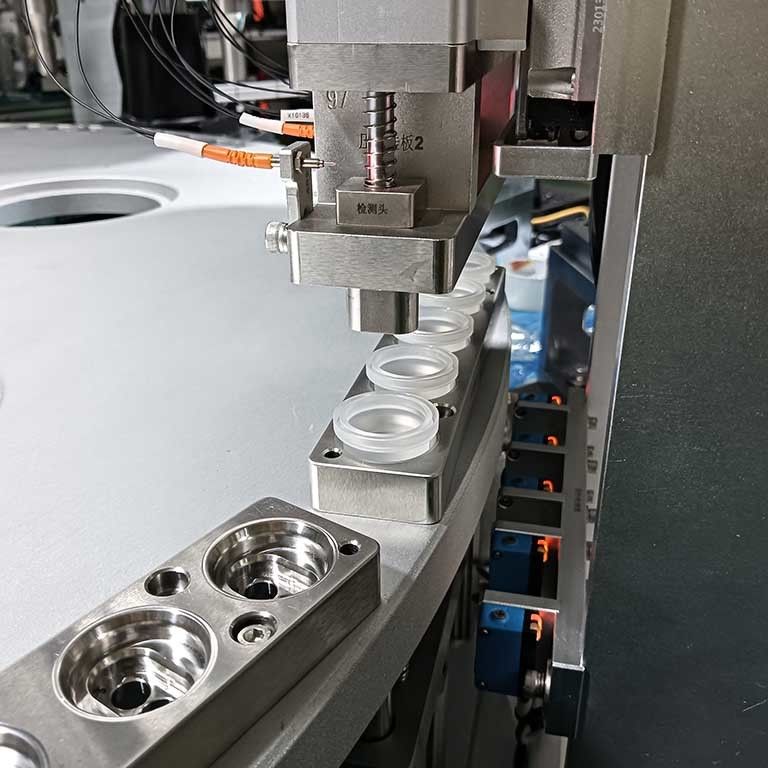

The Infusion Cover Assembly Machine Has An Active Force Composed Of A Servo Motor And A Divider, Which Is Stable

Fetures:

1. This device is used for automatic assembly of infusion combination caps for infusion soft bags and infusion plastic bottles.

2. All materials of the equipment are made of stainless steel and aluminum alloy, in compliance with ISO and GMP standards.

3. Each workstation has a separate power source for easy daily maintenance and repair.

4. The surfaces of components in contact with the product are polished to protect product quality.

5. The inner cover pressing adopts a servo linkage mechanism, with uniform pressure at each workstation and smooth pressing, ensuring the pressing quality of each product.

6. Each assembly step is equipped with a detection function to ensure that there are no defective products in the qualified products.

7. Adopting PLC control system and HMI human-machine interface operation. Low technical requirements for operators.

8. The active force is composed of a servo motor and a splitter, with high assembly accuracy and high product qualification rate.

Properties

Applicable products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
