Pull Ring Cap Euro Cap Assembly Machine 220V / 50Hz Automatic

Large Image : Pull Ring Cap Euro Cap Assembly Machine 220V / 50Hz Automatic

Product Details:

Place of Origin:	China
Brand Name:	Sencan
Certification:	CE
Model Number:	SC-P506

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	wooden case
Delivery Time:	90 work days
Payment Terms:	T/T
Supply Ability:	3 sets per month

Contact Now

Detailed Product Description

Power Supply:	220V/50Hz	Suitable Caps:	Euro-cap
Material:	Stainless Steel + Aluminium Alloy	Operation Mode:	Automatic
Control System:	PLC	Capacity:	4500-22000 Per/hour
Highlight:	Cap Assembly Machine 220V , Euro Cap Assembly Machine 220V , Pull Ring Cap Assembly Machine

Features

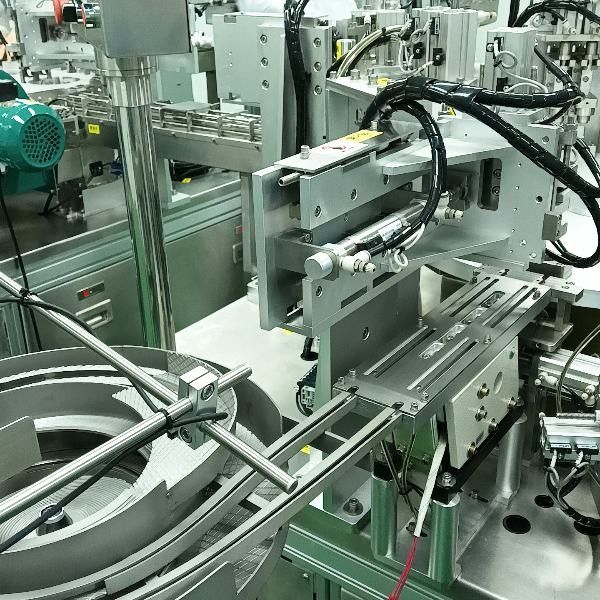

This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.
The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.
Each assemble process is followed with inspection function to make sure no defective products in qualified products.
Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.
Pneumatic power for shorter time of maintenance
Highly customized according to customer's requirements, actual capacity and production demand.

Properties

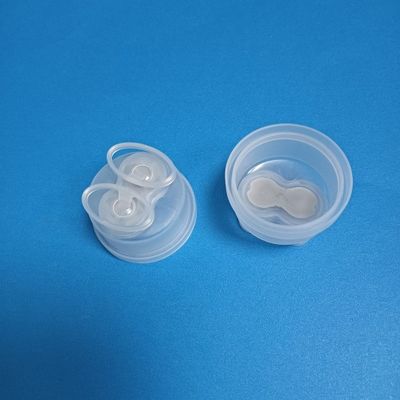

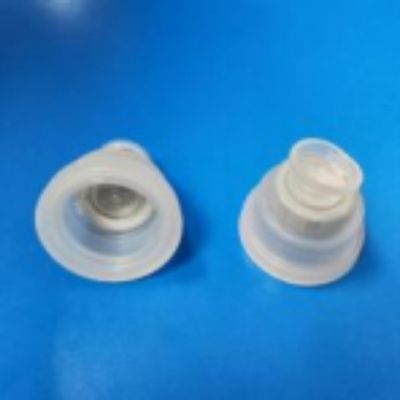

Applicable products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
