Infusion Peel Foil Cap Assembly Machine Automatic Bottle Capping Machine

Large Image : Infusion Peel Foil Cap Assembly Machine Automatic Bottle Capping Machine

Product Details:

Place of Origin:	China
Brand Name:	Sencan
Certification:	CE
Model Number:	SC-PT-506

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	wooden case
Delivery Time:	90 work days
Payment Terms:	T/T
Supply Ability:	3 sets per month

Contact Now

Detailed Product Description

Operating Interface:	Touch Screen	Capacity:	4500-22000 Per/hour
Production Efficiency:	High	Power Supply:	220V/50Hz
Material:	Stainless Steel + Aluminium Alloy	Type:	Automatic
Control System:	PLC
Highlight:	Infusion Peel Foil Cap Assembly Machine , Cap Assembly Machine Automatic , Automatic Bottle Capping Machine

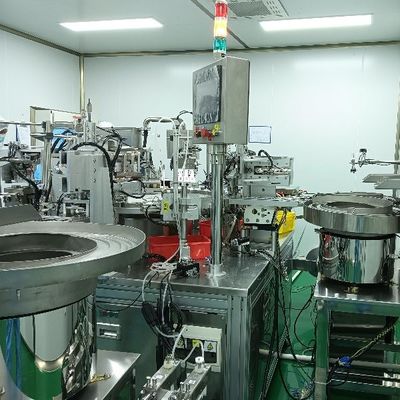

Infusion Peel-Foil Cap Assembly Machine

Features

This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.
Each workstation has independent driving source , convenient for daily maintenance.
The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.
Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.
Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards
Highly customized according to customer's requirements, actual capacity and production demand.

Properties

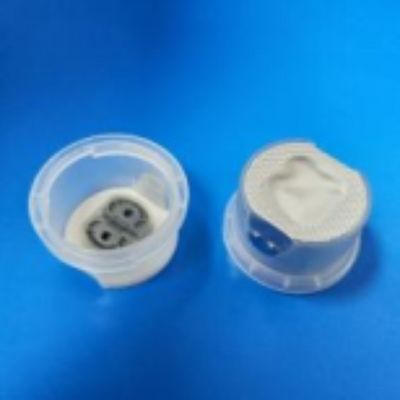

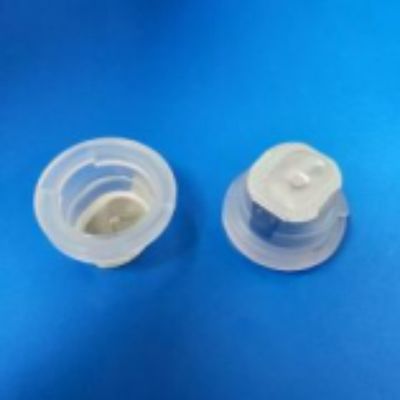

Applicable products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
