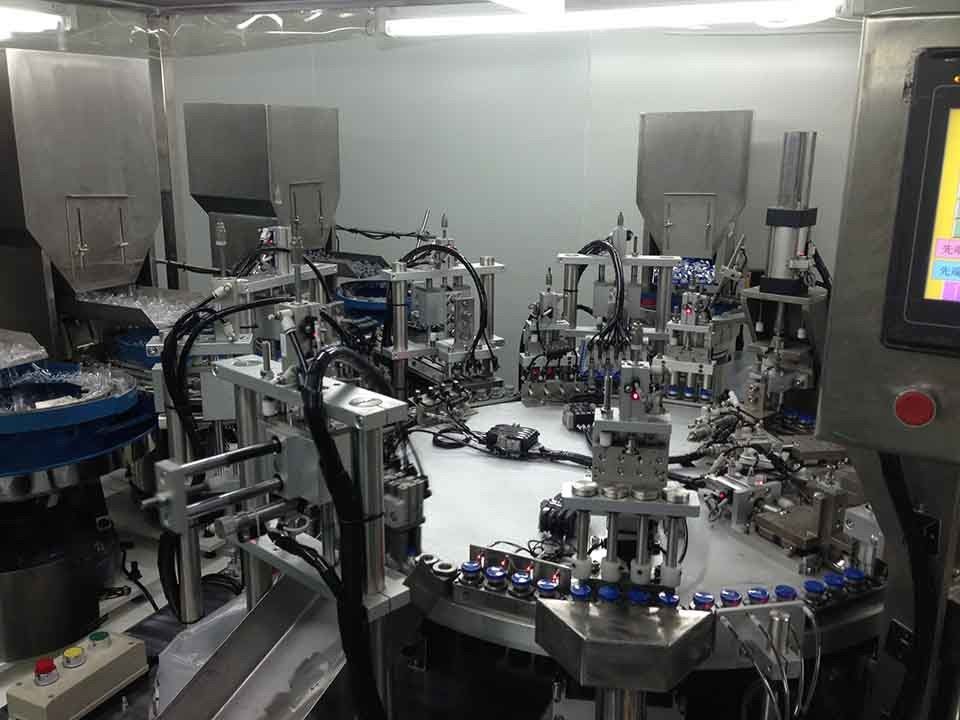

Aluminum plastic cover assembly machine with PLC system

Brand Name:	SENCAN
Model Number:	SC-PT-780
MOQ:	1 set
Payment Terms:	L/C, T/T
Supply Ability:	3 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Condition:

New

Transmission Type:

Flexible

Using Scope:

Caps Assembly

Size:

1600*1100*1800mm（Look At The Real Thing）

Speed Control:

Frequency Conversion

Automatic Production Line:

Caps Assembly Line Industry

Warranty:

1 YEARS

Packaging Details:

Wooden case

Highlight:

Aluminum plastic cover assembly machine

Product Description

Equipment features

1. Used for automatic assembly of hose type infusion soft bags with aluminum-plastic caps, PC polycarbonate infusion plugs, and PP polypropylene dosing plugs.

2. All materials of the equipment are made of stainless steel and aluminum alloy, which comply with GMP standards.

3. The aluminum-plastic cover sealing material is imported titanium alloy, with a mirror polishing treatment on the surface to ensure the smooth and beautiful sealing of the product.

4. The rotation of the sealing knife is driven by gear transmission, and each product is individually sealed, resulting in a high product qualification rate.

5. Each workstation is equipped with corresponding detection functions to ensure the correctness and quality of product assembly.

6. The active force is composed of a servo motor and a splitter, with high assembly accuracy and high qualification rate of the product.

7. The control system adopts PLC control and touch screen human-machine interface operation.

Properties

Applicable products	Aluminum-plastic caps&ports PC ports, spike ports and injection ports for non PVC soft tube IV bag
Production speed	8000-15000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	L3500×W3400×H1800(mm) Actual size varied with different production speed
Weight	About 3000kg
Operator	1set/person
