Needles Medical Injection Molding Machine With Touch Screen Interface

Brand Name:	Sencan
Model Number:	SC-PT-506
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	3 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Additional Features:

Touch Screen Interface, Adjustable Assembly Speed

Application:

Medical Product Manufacturing

Installation:

Easy To Install And Maintain

Power Supply:

AC380V ,50Hz

Control System:

PLC

Warranty:

1 Year

Packaging Details:

wooden case

Highlight:

Needles Medical Injection Molding Machine

Touch Screen Medical Injection Molding Machine

Touch Screen Interface Medical Injection Machine

Product Description

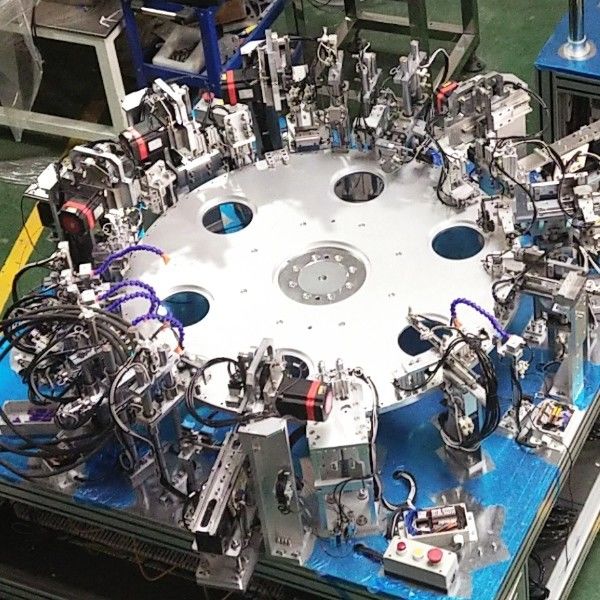

24-Hour Production Medical Product Assembly Machine For Needles And Injection Molding

Features

1. Automatic assembly for venous blood collection needles.

2. Including needle placement and injection molding, intubation and gluing, tensile testing, silicone oiling, assemble protective cover and other processes.

3. Customized loop line or rotatory turntable production.

4.Equipped with lancet eject and automatic reset functions for high rate of qualified product.

5. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenance personals.

6. All materials of the equipment are made of stainless steel + aluminum alloy, in line with GMP standards.

Properties

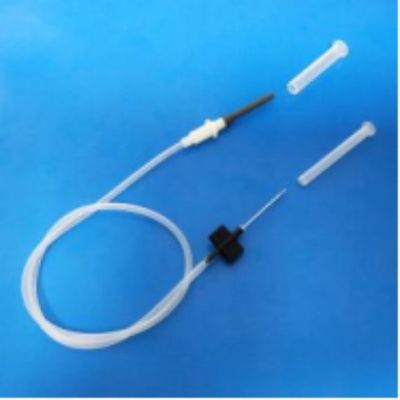

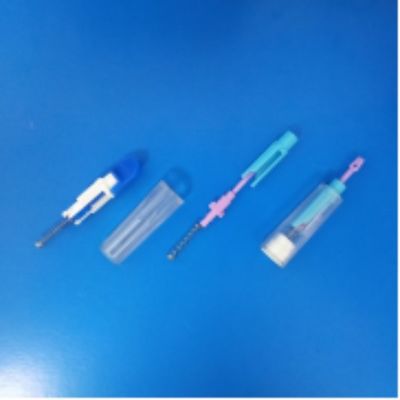

Applicable products	Venous blood collecting needle, blood sampling needle
Production speed	2500-3000pph
Rate of qualified product	Above 98%
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz,3kw/h, air pressure 7kg/m³
dimension	Actual size varied with production speed
weight	About 5000kg
operator	1set/person
