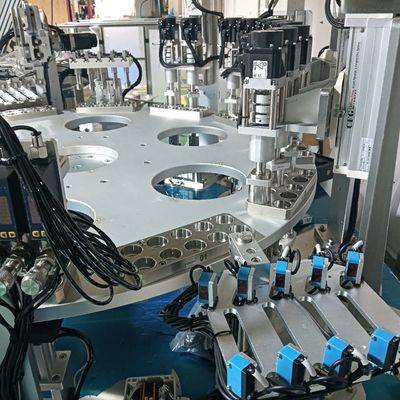

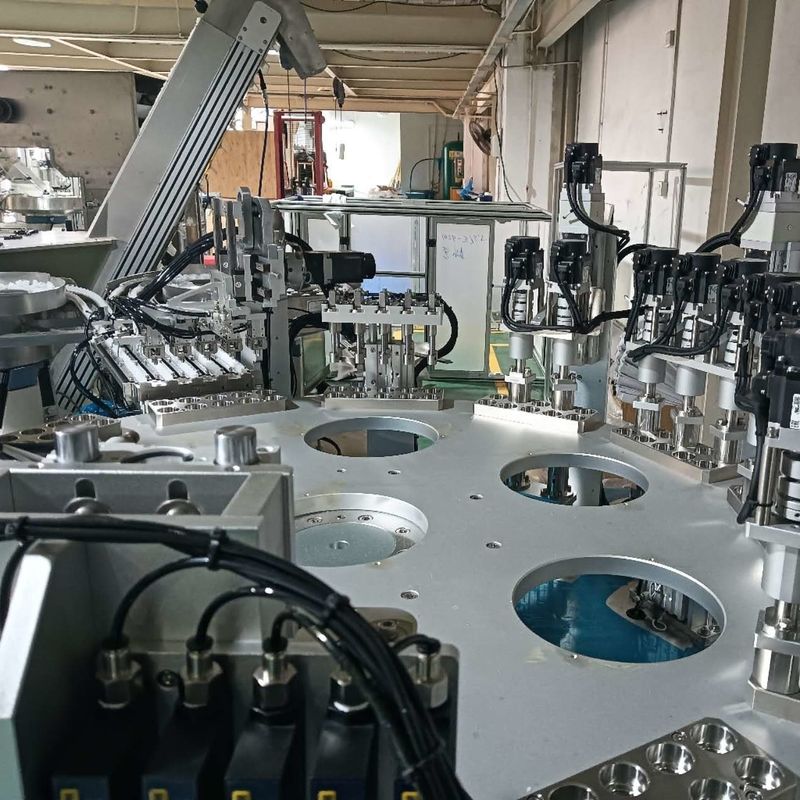

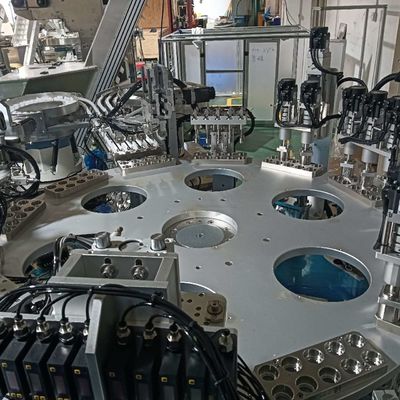

Rotary Cap Assembly Machine AC380V Automatic Screw Capping Machine OEM

High Product Qualification Rate Cap Assembly Machine For Jelly Caps

Equipment features
1.Customised turntable type equipment according to customer's capacity requirement.
2. The main power is composed of servo motor + reducer, doing intermittent movement. The fixture is in static state when assembling the product, with high assembly accuracy and high product qualification rate.
3. Screwing into the position is accurate, there will be no screwing oblique, screwing broken phenomenon. No damage to the appearance of the product, high product qualification rate
4. Each product is screwed individually to ensure the qualified rate of product screwing.
5. Equipped with automatic detection function, each step of the assembly process to do the corresponding detection, to achieve 100% of the good products qualified products.
6. All materials of the equipment are made of stainless steel and aluminium alloy, which meets the requirements of GMP.
7. PLC control system, touch screen human-machine interface operation.
8. Simple maintenance, easy to operate. The operator's professional and technical level is not high.
9. Convenient maintenance of spare parts, short replacement time.

Equipment Parameters
Applicable products: Jelly cap
Capacity: 2500-11000 pcs/h (according to customer's requirement)
Yield rate: above 98% (depending on the quality of semi-finished products)
Operation rate of the equipment: above 95%
Electrical system: AC380V, 50Hz, 3kw/h Compressed air source: 7kg/m3
Equipment size: subject to the actual
Equipment weight: 4000Kg
Operator: 1 unit/person
Equipment size: 4200mm*3200mm*1900mm
