Customizable Euro Cap Assembly Machine For Different Production Speed

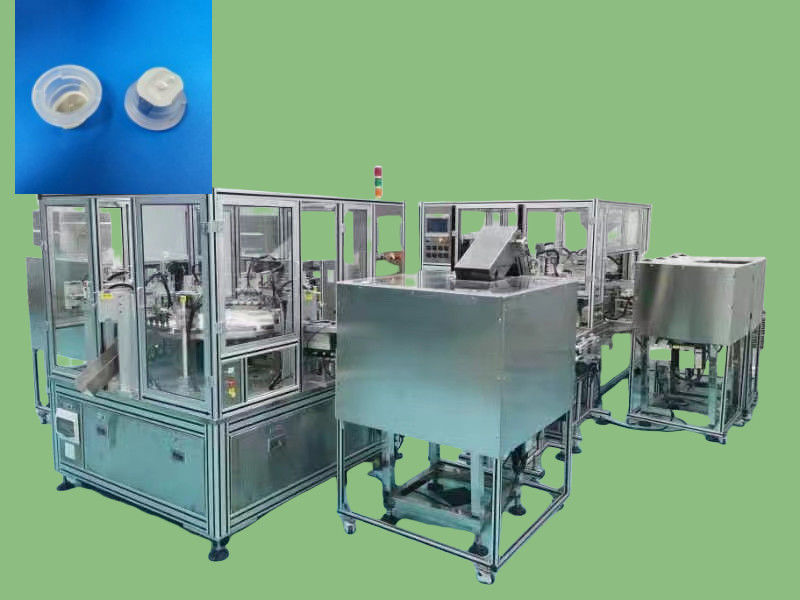

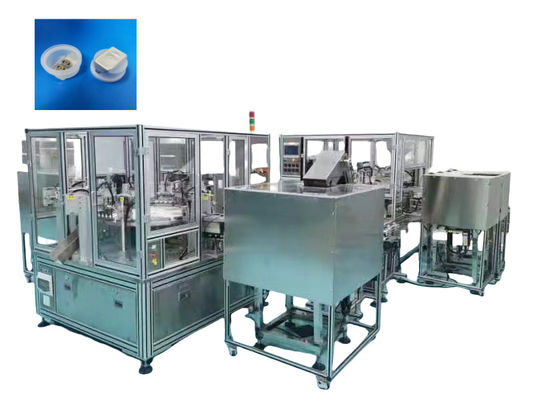

Large Image : Customizable Euro Cap Assembly Machine For Different Production Speed

Product Details:

Place of Origin:	China
Brand Name:	Sencan
Certification:	CE
Model Number:	SC-PT-619

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Deliberation
Packaging Details:	wooden case
Delivery Time:	90 work days
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per

Contact Now

Detailed Product Description

Suitable Cap Types:	Euro Caps	Production Efficiency:	High
Control System:	PLC	Material:	Stainless Steel
Product Type:	Assembly Machine	Capacity:	According To Customer’s Requirement
Active Force:	Servo Moter	Nature:	Automatic
Warranty:	1 Year	Power Source:	AC380V, 50Hz
Highlight:	Customizable Euro Cap Assembly Machine , Euro Cap Assembly Machine

Product Features
1.mainly used for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles
2.All materials of the machine are made of stainless steel + aluminium alloy, in accordance with GMP standards.
3.Each work station has independent power source, convenient for daily maintenance.
4.The surface in contact with the product is polished to protect the product.
5.Foil is automatically cut and welded on the machine.
6.Each assembly process is followed with check function to ensure that there are no defective products in qualified products.
7.PLC control system, human-machine interface operation. No high professional technical requirement for operator.
8.The main power is composed of servo motor + indexing drive, with high assembly precision and qualified rate.
9.Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenance personals.
10.Highly customized according to customer's product specifications, actual capacity and production demand.

Properties

Applicable products	Peel seal foil caps, foil seal closures and lids
Production speed	1500-8500pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2000kg
Operator	3sets/2persons,recommend 1set/person
