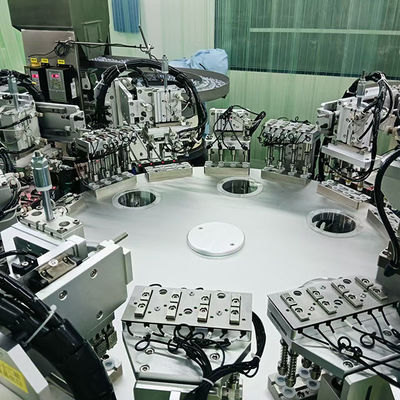

Stainless Steel Dynamic And Stable Automated Euro Cap Assembly Machine Driven By Servo Motors And Indexing Discs.

Large Image : Stainless Steel Dynamic And Stable Automated Euro Cap Assembly Machine Driven By Servo Motors And Indexing Discs.

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE
Model Number:	SC-PT-128

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Wooden case
Delivery Time:	90 working days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Main Drive:	Servo Motor And Indexing Disc	Efficiency Ratio:	Above 95%
Material:	Stainless Steels	Satisfactory Rate:	Above 99%
Packing:	Wooden Case	Operating Method:	Turntable
Highlight:	Indexing Discs Euro Cap Assembly Machine , Stainless Steel Euro Cap Assembly Machine , Servo Motors Euro Cap Assembly Machine

Features:

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance

10. Highly customized according to customer's requirements, actual capacity and production demand.

Properties:

Applicable products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person

Company Profile

Sencan Automation Machinery Co., Ltd. is a professional manufacturer of non-standard customized machine, integrating design, manufacturing and sales. As the earliest non-PVC infusion cap assembly machine supplier in China, Sencan has been striving for innovation, focusing on customer needs and creating value for more than 10 years. Sencan continues to focus on the needs of users, research consumables overall assembly solution, has developed a number of special equipment. Sencan has a professional assembly after-sales service team to create high-quality solutions for users.
