High Speed Medical Product Assembly Machine For Iodine And Disinfectant Caps

Brand Name:	Sencan
Model Number:	SC-PT-627
MOQ:	1 set
Price:	Deliberation
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Features:

High Efficiency, Precise Assembly

Product Type:

Assembly Machine

Power Source:

Electric

Packing:

Wooden Case

Assembly Type:

Automatic

Operating System:

PLC Control

Capacity:

High

Maintenance:

Easy To Maintain

Efficiency:

High

Control System:

PLC

Production Efficiency:

98%

Operating Interface:

Touch Screen

Packaging Details:

wooden case

Highlight:

Disinfectant Caps Medical Product Assembly Machine

High Speed Medical Product Assembly Machine

Iodine Medical Product Assembly Machine

Product Description

Features & Benefits

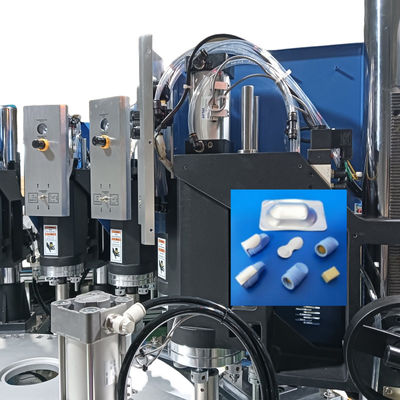

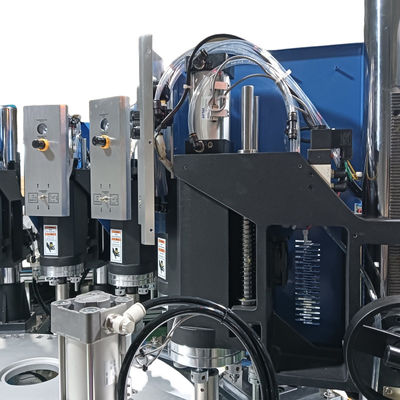

1.Used to automatically assemble peritoneal dialysis external extension tube end iodophor cap, infusion connector infection cap and catheter.
2.Customised rotary or loop line turntable type machine according to the actual capacity of the customer.
3.Each assembly process is provided with detection to ensure high quality qualified products.
4.Precision of iodine/disinfectant liquid addition can be controlled within 0.005 ml.
5.Accurate loading of sponges, 1/3 of the upper surface can be flat.
6. Automatic welding of aluminium foil or assembly of caps for sealing option (according to customer's requirements). Rolls of aluminium foil can be automatically cut in-line, or pre-cut foil can be welded directly.
7.The machine is made of stainless steel and aluminium alloy, in accordance with the requirements of GMP.
8.Main power from servomotor+reducer,induce intermittent motion,keep fixtures in static state during assembly,provide high rate of qualified product.
9.PLC, touch panel HMI.
10.Can be connected with the bag packaging machine to form an automatic production line.

Properties

Applicable products	Iodine mini cap, iodophor cap, disinfection cap
Production speed	1200-10000pph (according to customer’s requirement)
Rate of qualified product	Above 98%(dependent on semi-product quality)
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz, 4kw; air pressure: 7kg/m3
Dimension	Actual size varied with different production speed
Weight	About 1850kg
Operator	1set/person
