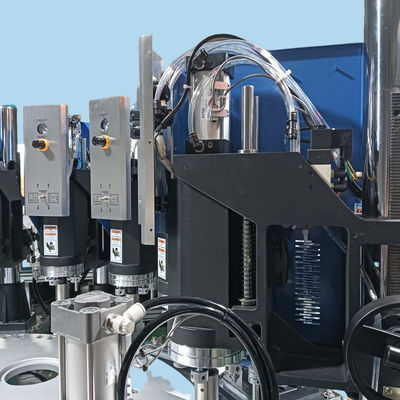

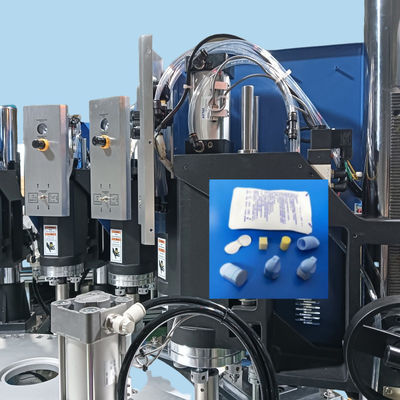

Linkable To Bag Packaging Machine Form An Automatic Line Medical Product Assembly Machine

Brand Name:	Sencan
Model Number:	SC-PT-628
MOQ:	1 set
Price:	Deliberation
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Features:

High Efficiency, Precise Assembly

Production Capacity:

4500-22000 Per/hour

Usage:

Medical Product Assembly

Production Efficiency:

98%

Power Source:

Electricity

Operation:

Touch Screen

Warranty:

1 Year

Active Force:

Servo Moter

Speed:

High Speed

Packaging Details:

wooden case

Highlight:

Linkable Medical Product Assembly Machine

Bag Packaging Medical Product Assembly Machine

Automatic Line Medical Product Assembly Machine

Product Description

Key features
1. Automated assembler for peritoneal dialysis external extension tube cap, infusion connector infection cap and catheter.
2.Custom rotary or loop line turntable type machine according to clients' actual capacity.
3.To ensure high quality qualified products, each assembly process is equipped with detection.
4.Iodine / disinfectant liquid addition precision can be controlled to within 0.005ml.
5.High sponge loading precision,1/3 top surface can be flat.
6.Automatic welding of aluminium foil or assembly of caps for sealing option(according to customer's requirement). Rolls of aluminium foil can be automatically cut in-line, or pre-cut foil can be welded directly.
7.Machine made of stainless steel and aluminium alloy, according to GMP requirements.
8.Main power from servo motor + reducer, induce intermittent motion, making jigs in static state during assembly, provide high rate of qualified product.
9.PLC control system, touch screen HMI to operate.
10.Linkable to bag packaging machine to form an automatic line.

Properties

Applicable products	Iodine mini cap, iodophor cap, disinfection cap
Production speed	1200-10000pph (according to customer’s requirement)
Rate of qualified product	Above 98%(dependent on semi-product quality)
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz, 4kw; air pressure: 7kg/m3
Dimension	Actual size varied with different production speed
Weight	About 1850kg
Operator	1set/person
