Infusion Soft Bag Interface Cap Welding Machine Automatic Grade

Large Image : Infusion Soft Bag Interface Cap Welding Machine Automatic Grade

Product Details:

Place of Origin:	China
Brand Name:	Sencan
Certification:	CE
Model Number:	SC-PT-631

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Deliberation
Packaging Details:	wooden case
Delivery Time:	90 work days
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per

Contact Now

Detailed Product Description

Operation Mode:	Touch Screen	Frequency:	50Hz
Feeding Method:	Vibrating Feeder	Operating System:	PLC
Warranty:	1 Year	Automation Grade:	Automatic
Voltage:	220V	Function:	Automatic Assembly Of Daily Necessities
Highlight:	bag interface cap welding machine , Automatic Interface Cap Welding Machine

Equipment features:

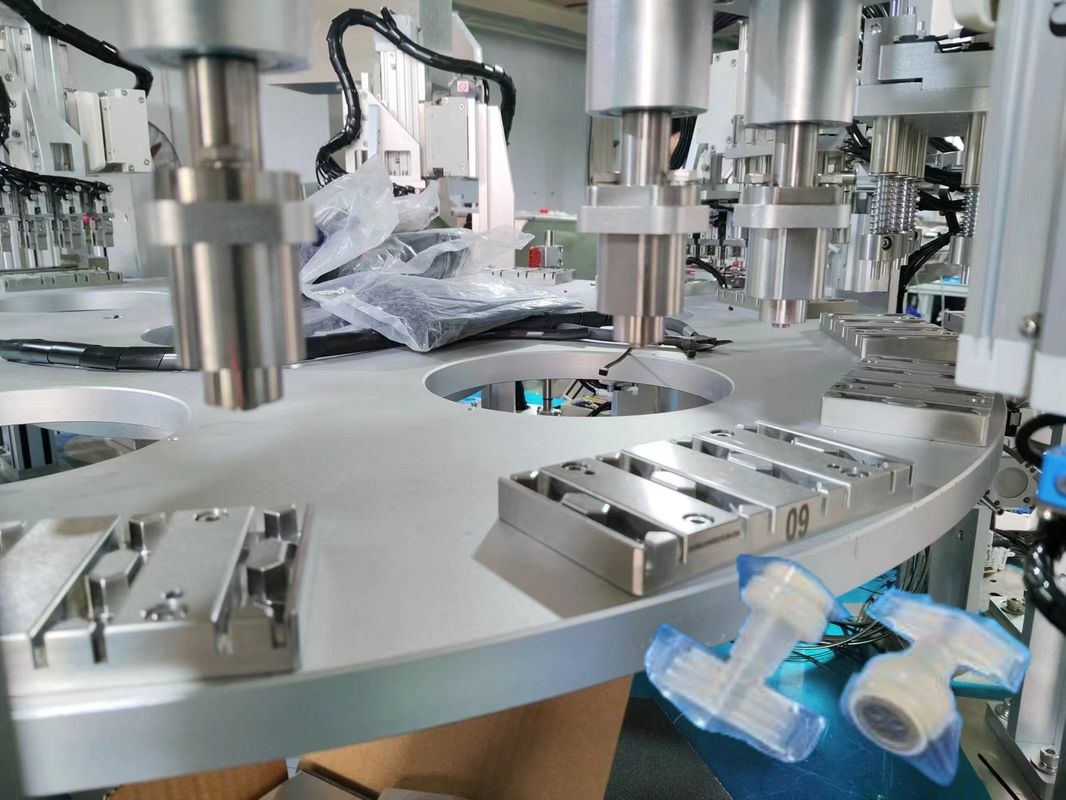

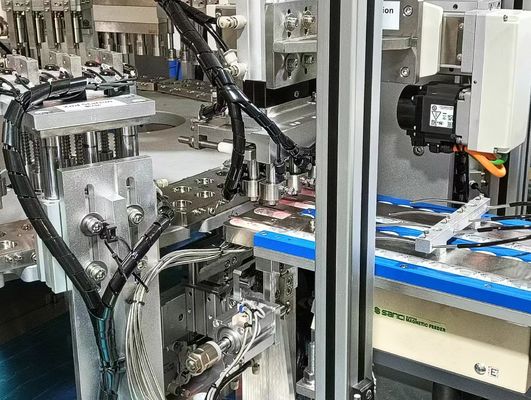

1. It is used for assembling and welding the interface and cover of infusion soft bag.
2. The main power element consists of servo motor + splitter, doing intermittent movement. The fixture is in a static state when the product is assembled, which ensures accurate assembly and high product qualification rate.
3. Each assembly process is equipped with corresponding detection function to ensure high quality yield.
4. The power element of the manipulator is composed of cylinder + solenoid valve, which is easy to repair and replace, and the work intensity of equipment maintenance is low.
5. All power components and testing components of the equipment are international famous brands.
6. The equipment is made of stainless steel and aluminium alloy, which meets the requirements of clean room and GMP.
7. It adopts PLC control system and touch screen man-machine interface operation.

Properties

Applicable products	Nasal swab, nasal collector, nasal sampler
Production speed	2500-8000pph
Rate of qualified product	Above 98%
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz,5kw/h, air pressure 7kg/m³
dimension	Actual size varied with production speed
weight	About 2850kg
operator	1set/person
