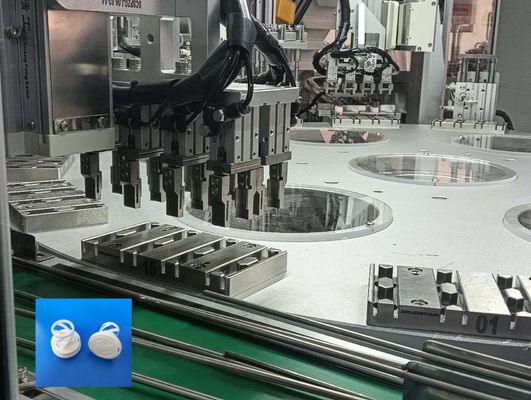

Fast And Daily Necessities Assembly Machine For Medical Moisture-Proof Agent And Desiccant Cap

Equipment features:
1.This equipment is used for automatic assembly of medical medicinal moisture-proof agent cap and desiccant cap.
2. It can be used for automatic filling of granular desiccant such as molecular sieve, silica gel, etc. It can also be used for block desiccant and desiccant core assembly.
3. The sealing paper sheet is automatically punching paper and film on the equipment, which can reduce the production cost of customers and improve the qualified rate of products.
4. The waste of sealing paper is centrally disposed of, which reduces the workload of operators.
5. Equipped with desiccant centralised feeding bin to prevent desiccant from absorbing moisture and being contaminated in the process of assembling.
6. The round cover is fed by feeding machine, which is stable and fast.
7. Each step of assembly process of the equipment is equipped with testing function to ensure that the qualified products are 100% good products.
8. Equipped with automatic counting function, which is convenient for production statistics.
9. Good and defective products are exported from separate outlets.
10. The main power is composed of servo motor + splitter, with smooth running speed and high assembly precision.

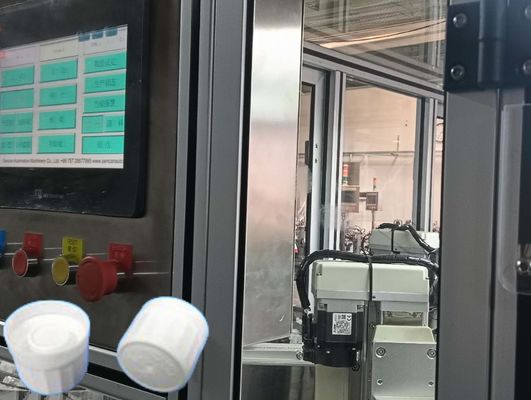

11. The control system adopts PLC control and human-machine interface operation, which reduces the difficulty of the operator's work.
12. The equipment can be customised according to customer's product specification, expected capacity and production demand.
13. It can be connected with injection moulding machine, image inspection machine and other equipments to form a whole automatic production line.

Equipment parameters
Applicable products: metronidazole cap, desiccant cap, moisture-proof cap, safety cap
Equipment capacity: 1500-8500 pcs/hour (according to customer requirements)
Yield rate: 99% or more
Equipment operation rate: more than 95%
Power supply: AC380V, 50Hz, 4kw/hr
Equipment size: different capacity of different equipment size, to the actual shall prevail.
Equipment weight: about 2000Kg
Operator: 3 sets / 2 people, recommended 1 set / person
