Automatic Euro Cap Assembly Machine For Pull-ring Folding And Broken Caps Fast And Precise Production

Brand Name:	Sencan
Model Number:	SC-PT-713
MOQ:	1 set
Price:	Deliberation
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Operating Method:

Turntable/mechanical

Suitable Cap Types:

Euro Caps

Assembly Speed:

14500-16000

Operation Mode:

Automatic

Power Supply:

220V/50Hz

Active Force:

Servo Moter

Cap Type:

Film Cap

Power Source:

AC380V,50Hz

Warranty:

1 Year

Control System:

PLC

Power Consumption:

1.5 KW

Packaging Details:

wooden case

Highlight:

Automatic Euro Cap Assembly Machine

Precise Production Euro Cap Assembly Machine

Product Description

Features

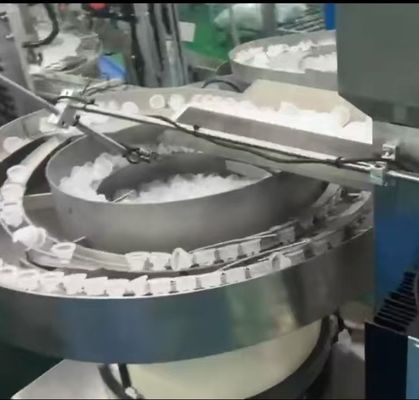

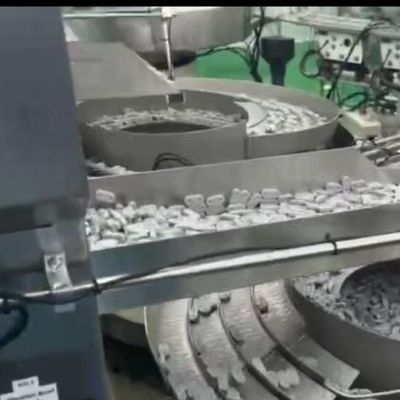

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Pneumatic power for shorter time of maintenance

7. Highly customized according to customer's requirements, actual capacity and production demand.

Properties

Applicable products	Pull-ring cap, double pull-ring cap, single folding cap, double folding cap, broken cap
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
