High Precision Stable Pressure Euro Cap Assembly Machine For Pharmaceutical Products ISO And GMP Compliant

Brand Name:	Sencan
Model Number:	SC-PT-714
MOQ:	1 set
Price:	Deliberation
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Operating Method:

Turntable/mechanical

Air Pressure:

0.5-0.7MPa

Control System:

PLC

Material:

Stainless Steel

Cap Diameter Range:

10-30mm

Operating Speed:

Adjustable

Suitable Caps:

Euro Caps

Accuracy:

High

Power Supply:

220V/50Hz

Voltage:

220V

Operating Interface:

Touch Screen

Operation:

About 95%

Packaging Details:

wooden case

Highlight:

Pharmaceutical Products Euro Cap Assembly Machine

Stable Pressure Euro Cap Assembly Machine

High Precision Euro Cap Assembly Machine

Product Description

Features

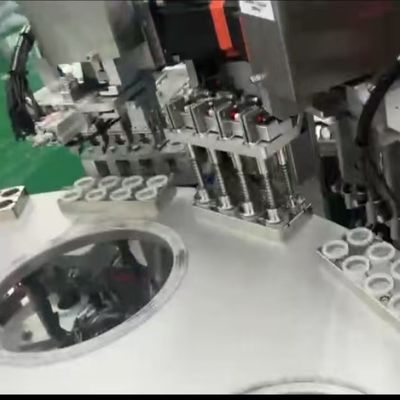

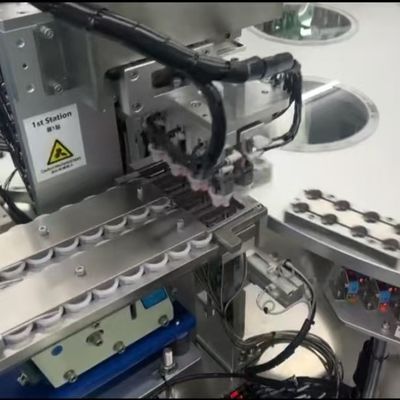

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

9. Highly customized according to customer's requirements, actual capacity and production demand.

Properties

Applicable products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
