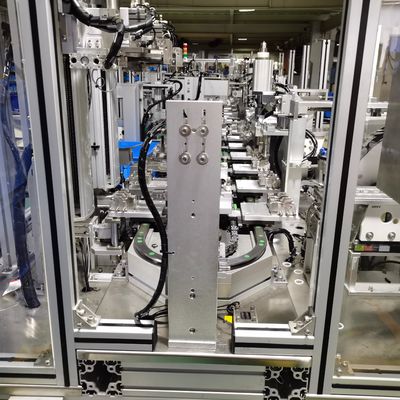

Spray Pump Head Assembly Machine With High Capacity In Loop Type

Detail Information

Place of Origin:

China

Certification:

Active Force:

Servo Moter

Suitable Product:

Spray Pump Head Assembly Machine

Operator:

Single

Material:

Stainless Steel

Packing:

Wooden Case

Assembly Type:

Fully Automatic

Efficiency Ratio:

Above 95%

Satisfactory Rate:

About 99%

Packaging Details:

wooden case

Highlight:

Product Description

Features

1. This machine is applied for automatic assembly of products for Spray pump head

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

6. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

7. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

8. Pneumatic power for shorter time of maintenance

9. Highly customized according to customer's requirements, actual capacity and production demand.

Properties

Applicable products	Spray pump head
Production speed	3500-4500pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	2 persons
