Customizable Euro Cap Assembly Machine For Plastic IV Infusion Bags And Bottles High Precision

Large Image : Customizable Euro Cap Assembly Machine For Plastic IV Infusion Bags And Bottles High Precision

Product Details:

Place of Origin:	China
Brand Name:	Sencan
Certification:	CE
Model Number:	SC-PT-720

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Deliberation
Packaging Details:	wooden case
Delivery Time:	90 work days
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per

Contact Now

Detailed Product Description

Warranty:	1 Year	Operation Mode:	Automatic
Main Drive:	Servo Motor And Indexing Disc	Product Type:	Assembly Machine
Nature:	Automatic	Packing:	Wooden Case
Voltage:	220V	Dimensions:	1200mm X 800mm X 1500mm
Accuracy:	High	Assembly Type:	Fully Automatic
Satisfactory Rate:	About 99%	Operating Interface:	Touch Screen
Operating Method:	Turntable
Highlight:	High Precision Euro Cap Assembly Machine , Plastic Euro Cap Assembly Machine

Features

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

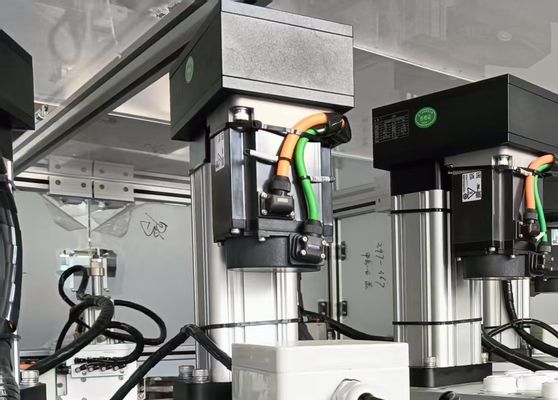

8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance

10. Highly customized according to customer's requirements, actual capacity and production demand.

Properties

Applicable products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
