Stainless Steel And Aluminium Alloy Heli Cap Assembly Machine For Milk Cap And Screw Products 98% Qualified Rate

Brand Name:	Sencan
Model Number:	SC-2025
MOQ:	1 set
Price:	Deliberation
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Applicable Product:

Milk Cap, Three Parts Of The Product Need To Be Directed, Screwing Products

Product Type:

Assembly Machine

Production Efficiency:

99%

Operator:

Single Or Double

Warranty:

1 Year

Packaging Details:

wooden case

Highlight:

Screw Products Heli Cap Assembly Machine

Aluminium Alloy Heli Cap Assembly Machine

Stainless Steel Heli Cap Assembly Machine

Product Description

Features

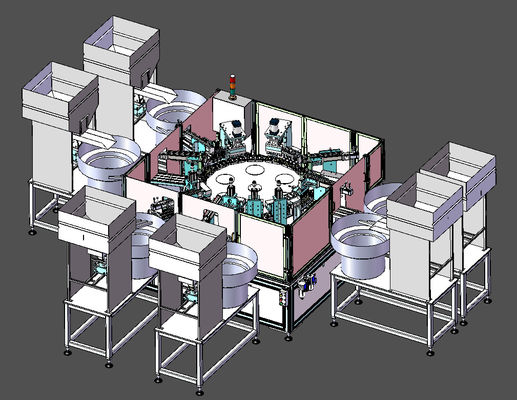

1.Customised turntable type or loop type production line according to customer's actual capacity.
2. The main power is composed of servo motor + reducer, doing intermittent motion. When assembling the products, the fixture is in a static state, precise assembling and high qualified rate.
3. Equipped with automatic detection function, each step of the assembly process is detected to achieve 100% qualified products.
4. All materials are made of stainless steel and aluminium alloy, in line with GMP requirements.
5. Equipped with automatic orientation function, avoiding the dead spot position between screw threads to ensure the correctness of assembly.
6. Torque detection step can be added.
7. According to the product structure, it can realise automatic pressing or automatic screwing.
8. Adopt PLC control system and touch screen man-machine interface operation.
9.Simple maintenance and easy operation. Low requirement for operator's professional level. Short replacement time for spare parts.

Properties

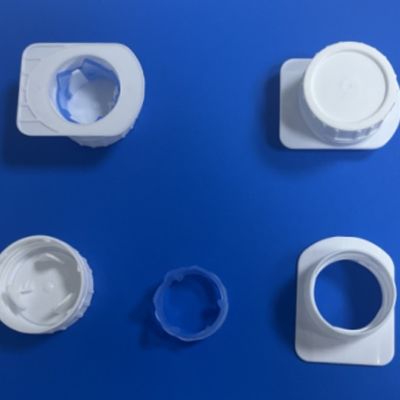

Applicable products	Milk cap, three parts of the product need to be directed, screwing products
Production speed	3000-12000 sets/hour (according to customer requirements)
Rate of qualified product	Above 98%
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz, 3kw/h
Dimension	Actual size varied with different production speed
Weight	About 3000kg
Operator	1set/person
