Outstanding International Suppliers for Driving and Inspection Systems of Medical Product Assembly Machine

Brand Name:	Sencan
Model Number:	SC-PT-326
MOQ:	1 set
Price:	Deliberation
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Operation Rate:

98%

Operation Type:

Turetable/mechanical

Type:

Automatic Assembly Machine

Function:

Assembly Of Medical Cap Products

Color:

Silver

Power Source:

AC380V,50Hz,4kw/hr

Installation:

Easy To Install And Maintain

Operation:

Touch Screen

Warranty:

1 Year

Production Efficiency:

98%

Application:

Medical Product Assembly

Automation Grade:

Automatic

Packaging Details:

wooden case

Highlight:

Medical Product Assembly Machine

Driving Medical Product Assembly Machine

Inspection Medical Product Assembly Machine

Product Description

Features

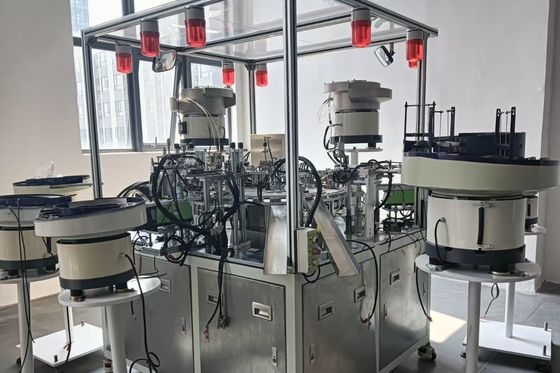

1.Fully automatic assembly of infusion needle-free connectors.

2.Including silicone pad insertion, leak detection, screwing, packaging sealing and other assembly processes.

3.Customize turntable or loop line production according to customers' actual capacity requirements.

4.Main power servo motor + indexing drive, which provide accurate assembly position and high quality accuracy.

5.Each assembly process is followed by detection function to ensure high qualified rate of assembly products.

6. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenance personals.

7. All driving and inspection systems made from outstanding international suppliers

8. All materials of the equipment are made of stainless steel + aluminum alloy, in line with clean room requirements and GMP standards.

9. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

Parameters

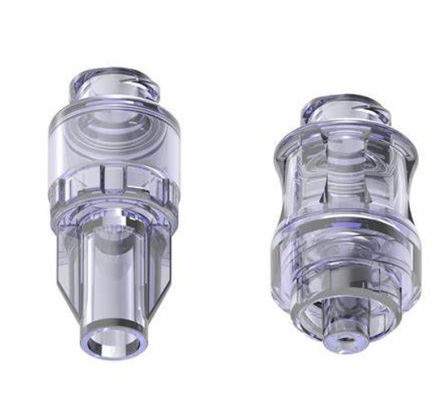

Applicable products	Types of needless connectors for infusion
Production speed	2500-3000 pcs/hr
Rate of qualified product	Above 98%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,3kw/h Compressed air:7kg/m3
Dimension	L3343×W2001×H1900(mm)
Weight	About 4000Kg
Operator	1set/person
Table height	550mm
