Turntable Type Infusion Bottle Double-Fold Cap Assembly Machine

Large Image : Turntable Type Infusion Bottle Double-Fold Cap Assembly Machine

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE
Model Number:	SC-2025

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	wooden case
Delivery Time:	3-4 month
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per month

Contact Now

Detailed Product Description

Assembly Speed:	14000 Caps Per Hour	Configuration:	Inspection Machine
Type:	Turnable Assembly Machine	Product Model:	Medical Infusion Bottle Caps
Active Force:	Servo Moter
Highlight:	Infusion Bottle Assembly Machine

Features

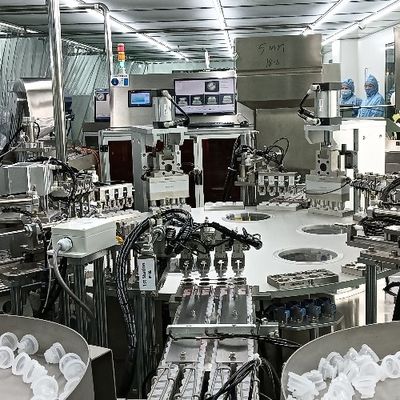

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. All materials of the equipment are made of stainless steel + aluminum alloy, meet GMP requirements.

3. Main power servo motor + indexing drive, high precision and high qualified product rate.

4.Highly customized according to customer's requirements, actual capacity and production demand.

5. International brand feeding vibrator with lower noise, smoother feeding and faster speed.

6.The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.
7.Each assemble process is followed with inspection function to make sure no defective products in qualified products.

Properties

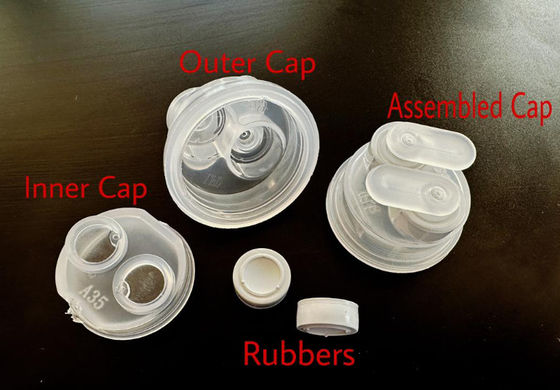

Applicable products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
