European cap bifold cap automated assembly machine turntable type, stable, efficient

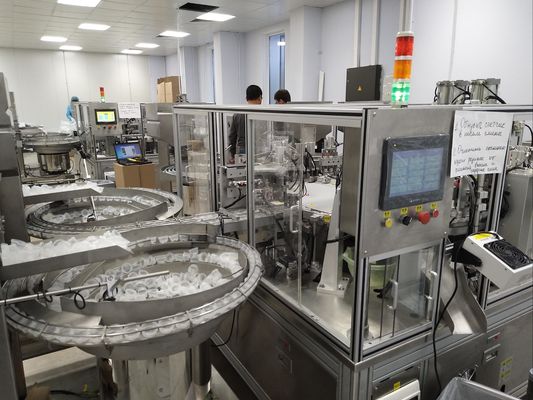

Large Image : European cap bifold cap automated assembly machine turntable type, stable, efficient

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE
Model Number:	SC-PT-970

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	wooden case
Delivery Time:	3-4 month
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per month

Contact Now

Detailed Product Description

Assembly Speed:	3000-14000 Caps Per Hour	Name:	Double Fold Cap Assemble Machine
Type:	Turnable Assembly Machine	Product Model:	Medical Infusion Bottle Caps
Active Force:	Servo Moter	Applicable Products:	Double Fold Cap
Highlight:	stable bifold cap assembly machine , Automated bifold cap assembly machine , Turntable bifold cap assembly machine

Features

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance

10. Highly customized according to customer's requirements, actual capacity and production demand.

Properties

Applicable products	double fold cap
Production speed	3600-14000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
