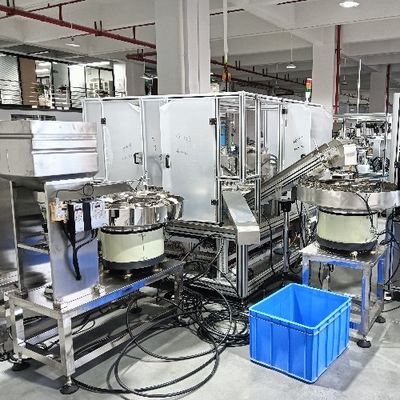

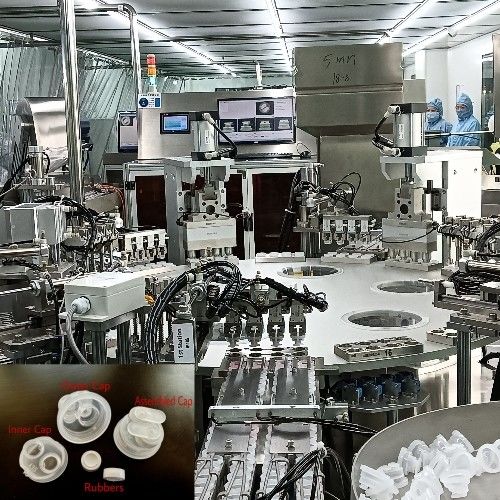

Double Port Cap Assembly Machine for Medical Infusion Bottles

Double Port Cap Assembly Machine for Medical Infusion Bottles

Brand Name:	SENCAN
Model Number:	SC-2025
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T,L/C
Supply Ability:	3 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Name:

Double Port Cap Assembly Machine

Product Model:

Medical Infusion Bottle Caps

Assembly Speed:

3600-14000 Caps Per Hour

Qualified Rate:

99%

Active Force:

Servo Moter

Type:

Turnable

Packaging Details:

wooden case

Highlight:

Stainless Steel Euro Cap Assembly Machine

High Capacity Euro Cap Assembly Machine

Turntable Type Euro Cap Assembly Machine

Product Description

Features

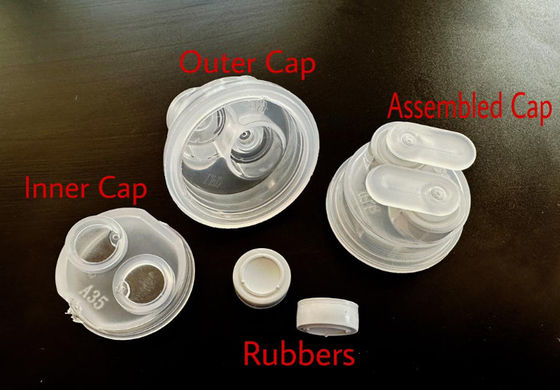

1. This machine is applied for automatic assembly of caps for double fold cap.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance

10. Highly customized according to customer's requirements, actual capacity and production demand.

Properties

Applicable products	double fold cap
Production speed	3600-14000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
