Stainless Steel and Aluminum Alloy Euro Cap Assembly Machine for Plastic IV Infusion Products ISO and GMP Compliant

Large Image : Stainless Steel and Aluminum Alloy Euro Cap Assembly Machine for Plastic IV Infusion Products ISO and GMP Compliant

Product Details:

Place of Origin:	CHINA
Brand Name:	SENCAN
Certification:	CE
Model Number:	SC-2025

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	wooden box
Delivery Time:	3-4 months
Payment Terms:	L/C, T/T
Supply Ability:	3 sets per month

Contact Now

Detailed Product Description

Qualified Rate:

Material:

Stainless Steel

Main Power:

Servo Motor + Indexing Drive

Highlight:

GMP Euro Cap Assembly Machine

ISO Euro Cap Assembly Machine

Features

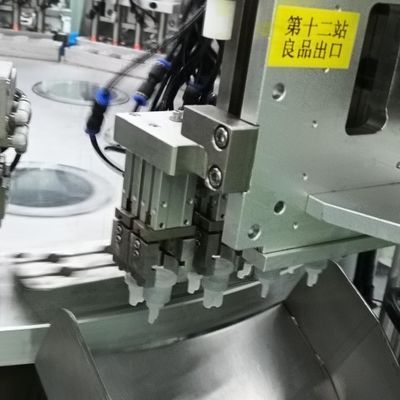

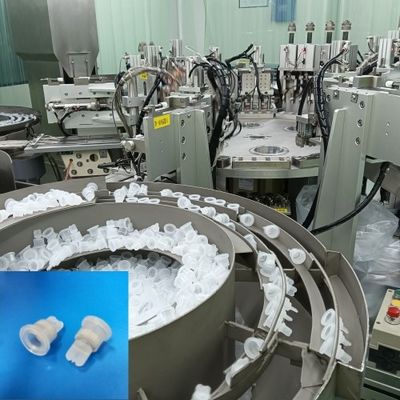

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance

10. Highly customized according to customer's requirements, actual capacity and production demand.

Properties

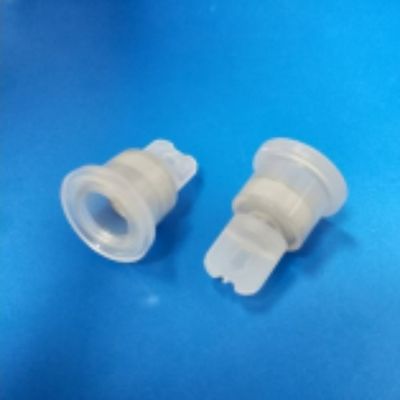

Applicable products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
