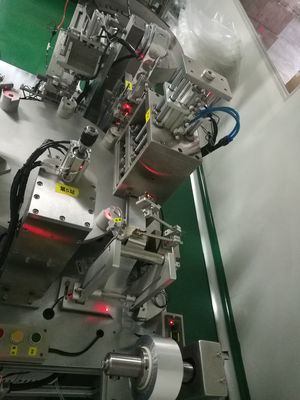

Desiccant Supply Bin for Moisture and Pollution Protection with Daily Necessities Assembly Machine

Brand Name:	Sencan
Model Number:	SC-PT-385
MOQ:	1 set
Price:	Deliberation
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Color:

Silver

Product Certification:

CE, ISO

Packing:

Wooden Case

Size:

4200mm*3200mm*1900mm

Power Source:

AC380V ,50Hz

Assembly Speed:

6000-10000 Pieces Per Hour

Packaging Type:

Wooden Case

Frequency:

50Hz

Usage:

Assembly Of Daily Necessities

Control System:

PLC Control

Type:

Assembly Machine

Feeding Method:

Vibrating Feeder

Maintenance:

Low Maintenance

Satisfactory Rate:

About 99%

Packaging Details:

wooden case

Highlight:

Moisture Protection Desiccant Supply Bin

Pollution Protection Desiccant Supply Bin

Assembly Machine Desiccant Supply Bin

Product Description

Features

1. Equipped with desiccant supply bin which can protect desiccant from moisture and pollution.

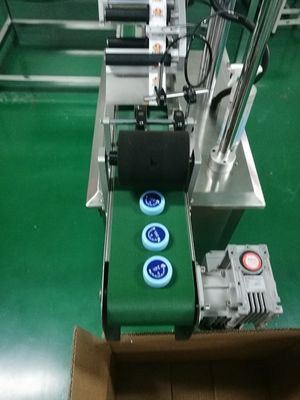

2. Round shaped caps will be loaded by feeding device which is stable and fast.

3. Each assembling process is well checked, to be sure 100% qualification of qualified products.

4. Equipped with automatic counting function for production statistics.

5. Qualified and unqualified products are released from separate exits.

6. Main drive from servo motor + indexing drive, with stable running speed and high assembly accuracy.

7. PLC control system and touch screen, easy operation for operators.

8. Customized according to customer's specifications and capacity requirements.

9. Connect with injection molding machine, camera inspection system or other equipment to form an overall automatic production line.

Properties

Applicable products	To fill the cap
Production speed	1500-8500pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2000kg
Operator	3sets/2persons,recommend 1set/person
