Highly Qualified Rate And Operation Rate With Safety Lancet Production Line For Adjustable And Safety Lancets

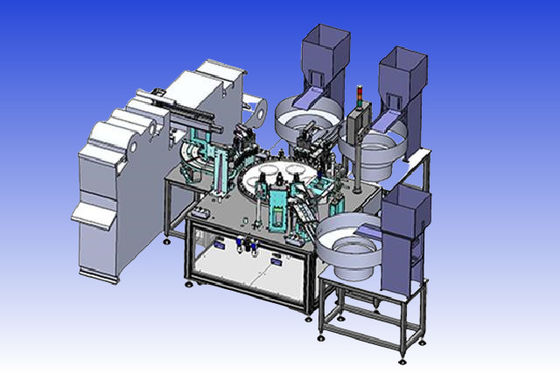

Large Image : Highly Qualified Rate And Operation Rate With Safety Lancet Production Line For Adjustable And Safety Lancets

Product Details:

Place of Origin:	China
Brand Name:	Sencan
Certification:	CE
Model Number:	SC-PT-389

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Deliberation
Packaging Details:	wooden case
Delivery Time:	90 work days
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per

Contact Now

Detailed Product Description

Automation Grade:	Automatic	Warranty:	1 Year
Applicable Product:	Blood Collection Needle	Production Line Configuration:	Single Line
Material:	Stainless Steel	Country Of Origin:	China
Main Power:	Servo Moter + Indexing Drive	Packaging Type:	Wooden Case
Voltage:	220V	Dimensions:	1200mm X 800mm X 1500mm
Usage:	Medical Device Production	Capacity:	According To Customer’s Requirements
Highlight:	Adjustable Safety Lancet Production Line , Operation Rate Safety Lancet Production Line , Highly Qualified Safety Lancet Production Line

Features

1. Automatic assembly for blood lancet, blood collecting needles.

2. Customized loop line or rotatory turntable for production.

3. Main power servo motor + indexing drive, which provide accurate assembly position and high quality accuracy.

4. Each assembly process is followed by detection function to ensure high qualified rate of assembly products.

5. Equipped with lancet eject and automatic reset functions for high rate of qualified product.

6. Pneumatic power to reduce time of machine maintenance and replacement, no high professional and technical requirements for maintenance.

7. All driving and inspection parts come from international suppliers.

8. Machine materials made of stainless steel and aluminum alloy, in compliance with GMP requirements.

9. PLC control system, HMI operation.

Properties

Applicable products	Peripheral blood collecting needles, blood lancet, adjustable lancet, safety lancet
Production speed	2500-8000pph
Rate of qualified product	Above 98%
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz,3kw/h, air pressure 7kg/m³
Dimension	Actual size varied with production speed
Weight	About 2850kg
Operator	1set/person
