Easy Operation for Operator with No High Technical Requirement in Medical Product Assembly Machine for Nasal Swab Assembly

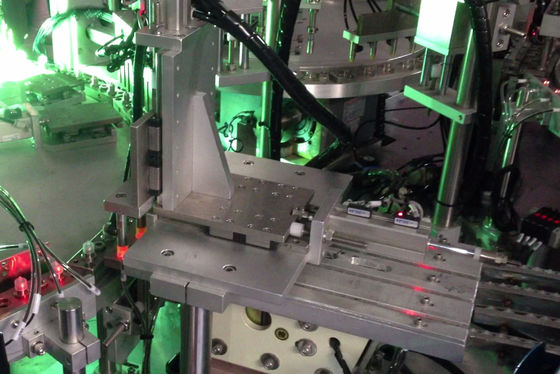

Large Image : Easy Operation for Operator with No High Technical Requirement in Medical Product Assembly Machine for Nasal Swab Assembly

Product Details:

Place of Origin:	China
Brand Name:	Sencan
Certification:	CE
Model Number:	SC-PT-398

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Deliberation
Packaging Details:	wooden case
Delivery Time:	90 work days
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per

Contact Now

Detailed Product Description

Operation Mode:	Touch Screen	Qualified Product Rate:	Above 99%
Power Source:	Electricity	Packaging Type:	Wooden Case
Application:	Medical Industry	Cap Type:	All Medical Need Welding Products
Operating Mode:	Automatic	Capacity:	1500-8500 Per/hour
Material:	Stainless Steel	Efficiency:	High
Suitable Caps:	Nasal Swab Assembly Machine
Highlight:	Easy Operation Assembly Machine , Nasal Swab Assembly Machine

Features

1. Automatic assembly of Nasal Swab.

2. Main power servo motor + cam indexing drive, which provide accurate assembly position and high quality accuracy.

3. Each assembly process is followed by detection function to ensure high qualified rate of assembly products.

4. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenence personals.

5. All driving and inspection systems made from outstanding international suppliers

6. All materials of the equipment are made of stainless steel + aluminum alloy, in line with clean room requirements and GMP standards.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

Properties

Applicable products	Nasal swab, nasal collector, nasal sampler
Production speed	2500-8000pph
Rate of qualified product	Above 98%
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz,5kw/h, air pressure 7kg/m³
dimension	Actual size varied with production speed
weight	About 2850kg
operator	1set/person
