Servo Motor Driven Medical Product Assembly Machine for Non-PVC Soft Bag and Aluminum-Plastic Caps

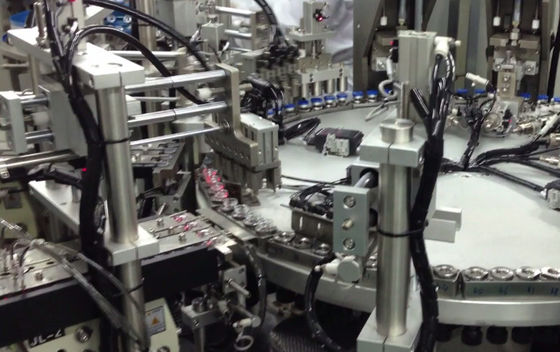

Large Image : Servo Motor Driven Medical Product Assembly Machine for Non-PVC Soft Bag and Aluminum-Plastic Caps

Product Details:

Place of Origin:	China
Brand Name:	Sencan
Certification:	CE
Model Number:	SC-PT-342

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Deliberation
Packaging Details:	wooden case
Delivery Time:	90 work days
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per

Contact Now

Detailed Product Description

Assembly Speed:	4500-22000 Per/hour	Qualified Rate:	99%
Function:	Automated Assembly Of Medical Products	Colour:	Stainless Steel Metallic Color
Frequency:	50Hz	Power Source:	Electric
Applicable Products:	Insulin Pen Needle	Active Force:	Servo Motor Or Cylinder
Application:	Medical Product Assembly	Product Model:	Medical Infusion Bottle Caps
Highlight:	Servo Motor Medical Product Assembly Machine , Cylinder Driven Medical Product Assembly Machine

Features

1. Used for automatic assembly for spike ports and injection ports of non-PVC double tube soft bag, aluminum-plastic PC infusion ports, PP and polypropylene dosing plugs.

2. All materials of the equipment are made of stainless steel + aluminum alloy, in compliance with ISO and GMP pharmaceutical packaging requirements.

3. Material for aluminum plastic cap sealing is made of titanium alloy, surface mirror polished to ensure smooth and nice sealing quality.

4. Rotation of sealing knife is driven by gear, each cap is sealed separately, achieving high qualified rate.

5. Each workstation is equipped with detection to make sure correctness and accuracy of assembling.

6. Main power comes from servo motor +indexing drive, which ensure high precision assembly.

7. PLC control system, touch screen HMI operation.

Properties

Applicable products	Aluminum-plastic caps&ports PC ports, spike ports and injection ports for non PVC soft tube IV bag
Production speed	8000-15000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	L3500×W3400×H1800(mm) Actual size varied with different production speed
Weight	About 3000kg
Operator	1set/person
