Customized Euro Cap Assembly Machine for IV Infusion Soft Bags and Bottles Tailored to Customer s Specifications

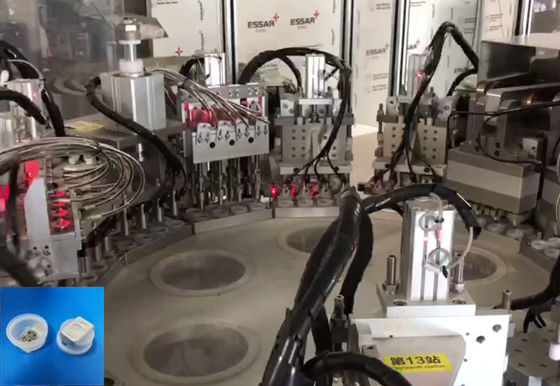

Large Image : Customized Euro Cap Assembly Machine for IV Infusion Soft Bags and Bottles Tailored to Customer s Specifications

Product Details:

Place of Origin:	China
Brand Name:	Sencan
Certification:	CE
Model Number:	SC-PT-353

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Deliberation
Packaging Details:	wooden case
Delivery Time:	90 work days
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per

Contact Now

Detailed Product Description

Operation Type:	Turetable/mechanical	Operating Method:	Turntable/mechanical
Main Power:	Servo Motor + Indexing Drive	Air Pressure Gauge:	SMC
Function:	Cap Assembly	Product Model:	Medical Infusion Caps
Capacity:	1000-15,000 Caps Per Hour	Qualified Rate:	98%
Operating Rate:	96%	Power Source:	Electricity
Main Drive:	Servo Motor And Indexing Disc	Efficiency Ratio:	Above 95%
Suitable Cap Types:	Euro Caps	Assembly Type:	Fully Automatic
Highlight:	Tailored Euro Cap Assembly Machine

Features

1. mainly used for automatic assembly of easy peel foil caps for IV infusion soft bags and bottles

2. All materials of the machine are made of stainless steel + aluminum alloy, in compliance with GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. Foil being cut and welded on machine automatically .

6. Each assemble process is followed with check function to ensure that there are no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. The main power is composed of servo motor + indexing drive, with high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenance personals.

10. Highly customized according to customer's product specifications, actual capacity and production demand.

Properties

Applicable products	Peel seal foil caps, foil seal closures and lids
Production speed	1500-8500pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2000kg
Operator	3sets/2persons,recommend 1set/person
