PLC Control System And Human-Machine Interface Operation For Easy With Medical Product Assembly Machine For Nasal Swab

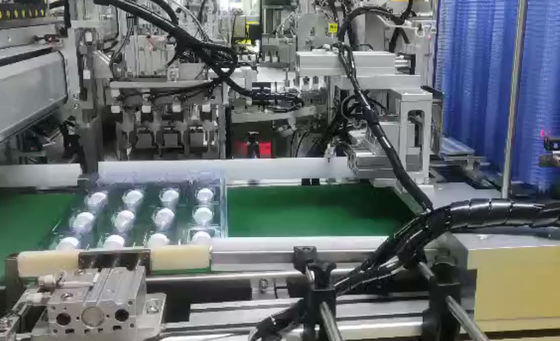

Large Image : PLC Control System And Human-Machine Interface Operation For Easy With Medical Product Assembly Machine For Nasal Swab

Product Details:

Place of Origin:	China
Brand Name:	Sencan
Certification:	CE
Model Number:	SC-PT-372

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Deliberation
Packaging Details:	wooden case
Delivery Time:	90 work days
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per

Contact Now

Detailed Product Description

Features:	High Precision, Fast Speed, Easy Operation	Nature:	Automatic
Operating System:	PLC Control	Product Type:	Nasal Swab Assembly Machine
Origin:	China	Main Drive:	Servo Motor And Indexing Disc
Installation:	Easy To Install And Maintain	Colour:	Stainless Steel Metallic Color
Maintenance:	Easy To Maintain	Function:	Assembly Of Medical Products
Automation Grade:	Automatic	Operation:	Automation
Highlight:	Nasal Swab Medical Product Assembly Machine , Medical Product Assembly Machine

Features

1. Automatic assembly of Nasal Swab.

2. Main power servo motor + cam indexing drive, which provide accurate assembly position and high quality accuracy.

3. Each assembly process is followed by detection function to ensure high qualified rate of assembly products.

4. Pneumatic power for shorter time of maintenance and replacement, no high professional and technical requirement for maintenence personals.

5. All driving and inspection systems made from outstanding international suppliers

6. All materials of the equipment are made of stainless steel + aluminum alloy, in line with clean room requirements and GMP standards.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

Properties

Applicable products	Nasal swab, nasal collector, nasal sampler
Production speed	2500-8000pph
Rate of qualified product	Above 98%
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz,5kw/h, air pressure 7kg/m³
dimension	Actual size varied with production speed
weight	About 2850kg
operator	1set/person
