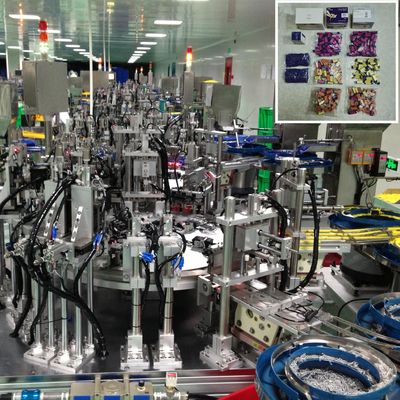

Turntable Type Automated Blood Collection Needle Assembly Machine Reduce Labor Cost High Efficiency

Large Image : Turntable Type Automated Blood Collection Needle Assembly Machine Reduce Labor Cost High Efficiency

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE
Model Number:	SC-PT-176

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden case
Delivery Time:	3-4 months
Payment Terms:	L/C, T/T
Supply Ability:	3 sets per month

Contact Now

Detailed Product Description

Production Capacity:	According To Customer's Requirement	Automation Grade:	Automatic
Control System:	PLC	Packaging Type:	Wooden Case
Material:	Stainless Steel + Aluminium Alloy	Name:	Blood Collection Needle Assembly Machine
Highlight:	Automated Blood Collection Needle Assembly Machine , Turntable Blood Collection Needle Assembly Machine

Main categories

1.Medical Device Assembly Machine

2.Drug Packaging Assembly Machine

3.Food Beverage Consumables Assembly Machine

4.Daily Use, Electronic&Metals Assembly Machine

5.General Machine

6.Cap Assembly Machine

7.Whole Solution Production Line

Equipment features

1.When installing the needle, assemble it at an inclined angle to avoid damaging the needle tip.

2. The needle hopper is equipped with a needle tying device to prevent the occurrence of disorderly needles.

3. The cover plate of the needle hopper is easy to disassemble, and each needle installation can be completed within 3 minutes.

4. The production cycle is between 10-15 seconds, with high production capacity and good stability.

5. Adopting a new type of adsorption mechanism (already patented) to replace traditional vacuum adsorption methods and reduce production electricity consumption.

Properties

Applicable products	Peripheral blood collecting needles, blood lancet, adjustable lancet, safety lancet
Production speed	2500-8000pph
Rate of qualified product	Above 98%
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz,3kw/h, air pressure 7kg/m3
Dimension	Actual size varied with production speed
Weight	About 2850kg
Operator	1set/person
