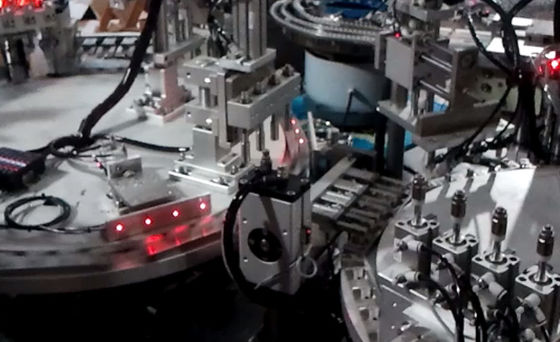

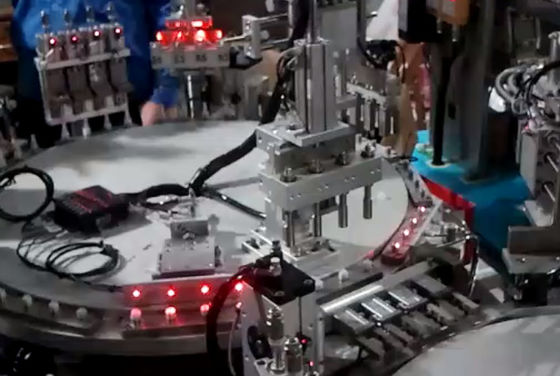

Fast And Accurate Medical Product Assembly Machine For Blood Collecting Needles And Injection Molding

Large Image : Fast And Accurate Medical Product Assembly Machine For Blood Collecting Needles And Injection Molding

Product Details:

Place of Origin:	China
Brand Name:	Sencan
Certification:	CE
Model Number:	SC-PT-381

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Deliberation
Packaging Details:	wooden case
Delivery Time:	90 work days
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per

Contact Now

Detailed Product Description

Dimensions:	Customizable	Product Model:	Insulin Needle, Blood Collecting Needles.
Mechanism:	Servo	Applicable Product:	Disposable Scalpel
Installation:	Easy To Install And Maintain	Feeding Method:	Vibrating Plate
Automation Level:	Fully Automated	Control:	PLC
Product Type:	Assembly Machine	Active Force:	Servo Moter
Operator:	1 Set/person	Accuracy:	High
Color:	Silver
Highlight:	Accurate Medical Product Assembly Machine , Injection Molding Medical Product Assembly Machine

Features

1. For picking placement and injection molding of products with needles like Insulin blood lancet, blood collecting needles.

2. Equipped with two needle hoppers, storage capacity 200,000 needles, available 24 hours’ production.

3. Assemble at an inclined angle to avoid needle tip damaging.

4. Binding and tightening device installed in needle hoppers to avoid chaos of needles.

5. Easy removed hopper lid, needles can be loaded within 3 minutes.

6. Production cycle 10-15s, high productivity and good stability.

7. New needle adsorption system (patented), not vacuumization mode, low electricity consumption.

8. Customized according to customer’s real capacity and requirements.

Properties

Applicable products	Pick and place needles then injection moulding for peripheral blood lancet, venous blood collecting needles, products with needles and injection moulding
Production speed	Depend on moulding cavity quantity
Rate of qualified product	Above 99%
Rate of operation rate	Above 97%
Power source	AC380V, 50Hz,4kw/hr
Dimension	L1950×W1250×H1900(mm) Actual size varied
Weight	About 2800kg
Operator	1set/person
