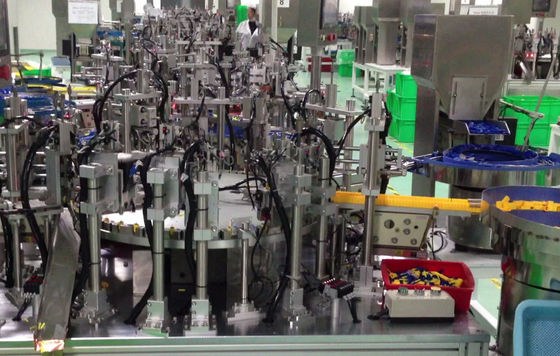

High Qualified Rate And Production Of Blood Lancet And Collecting Needles With Safety Lancet Production Line At Above 98%

Brand Name:	Sencan
Model Number:	SC-PT-394
MOQ:	1 set
Price:	Deliberation
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Features:

Adjustable Depth Control, Safety Mechanism, High Precision

Control:

PLC

Material:

Stainless Steel

Usage:

Safety Blood Collection Needle

Production Capacity:

1000- 8000units Per Hour

Qualified Rate:

98%

Country Of Origin:

China

Product Type:

Medical Equipment

Operator:

1 Person

Applicable Product:

Safety Blood Lancet

Packaging Type:

Wooden Case

Operation:

Touch Screen

Operation Type:

Turntable

Control System:

Needleless Joints

Packaging Details:

wooden case

Highlight:

Collecting Needles Safety Lancet Production Line

Blood Lancet Safety Lancet Production Line

Product Description

Features

1. Automatic assembly for blood lancet, blood collecting needles.

2. Customized loop line or rotatory turntable for production.

3. Main power servo motor + indexing drive, which provide accurate assembly position and high quality accuracy.

4. Each assembly process is followed by detection function to ensure high qualified rate of assembly products.

5. Equipped with lancet eject and automatic reset functions for high rate of qualified product.

6. Pneumatic power to reduce time of machine maintenance and replacement, no high professional and technical requirements for maintenance.

7. All driving and inspection parts come from international suppliers.

8. Machine materials made of stainless steel and aluminum alloy, in compliance with GMP requirements.

9. PLC control system, HMI operation.

Properties

Applicable products	Peripheral blood collecting needles, blood lancet, adjustable lancet, safety lancet
Production speed	2500-8000pph
Rate of qualified product	Above 98%
Rate of operation rate	Above 95%
Power source	AC380V, 50Hz,3kw/h, air pressure 7kg/m³
Dimension	Actual size varied with production speed
Weight	About 2850kg
Operator	1set/person
