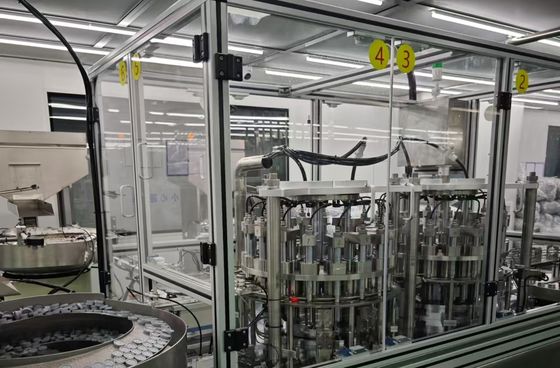

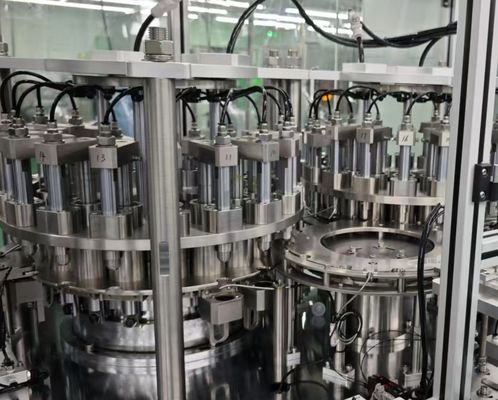

User-Friendly Operation Euro Cap Assembly Machine With PLC Control System No Technical Requirement

Brand Name:	Sencan
Model Number:	SC-PT-398
MOQ:	1 set
Price:	Deliberation
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Type:

Assembly Machine

Air Consumption:

0.5 M3/min

Production Efficiency:

High

Main Drive:

Servo Motor And Indexing Disc

Product Power:

220V

Qualified Rate:

98%

Operation Mode:

Automatic

Power Consumption:

2.5 KW

Efficiency Ratio:

Above 95%

Suitable Cap Types:

Double Fold Cap Film Cap Infusion Cap

Applicable Products:

Double Fold Cap

Type:

Automatic Mechanical

Operation:

About 95%

Operation Rate:

95%

Control System:

PLC

Packaging Details:

wooden case

Highlight:

PLC Control Euro Cap Assembly Machine

0.5 m3/min Euro Cap Assembly Machine

Product Description

Features

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance

10. Highly customized according to customer's requirements, actual capacity and production demand.

Properties

Applicable products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
