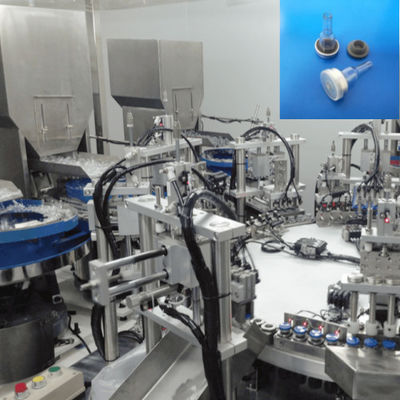

High Precision Aluminium-Plastic Cap Cap Assembly Machine For IV Bag Spike Ports And Injection Ports Cap

Brand Name:	Sencan
Model Number:	SC-2025
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	3 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Power Supply:

AC380V ,50Hz

Control System:

PLC

Weight:

About 1000kg

Operator:

1 Set/person

Qualified Product Rate:

Above 99%

Packaging Details:

wooden case

Highlight:

Aluminium Plastic Cap Assembly Machine

High Precision Cap Assembly Machine

High Qualified Rate Cap Assembly Machine

Product Description

Features

1. Used for automatic assembly for spike ports and injection ports of non-PVC double tube soft bag, aluminum-plastic PC infusion ports, PP and polypropylene dosing plugs.

2. All materials of the equipment are made of stainless steel + aluminum alloy, in compliance with ISO and GMP pharmaceutical packaging requirements.

3. Material for aluminum plastic cap sealing is made of titanium alloy, surface mirror polished to ensure smooth and nice sealing quality.

4. Rotation of sealing knife is driven by gear, each cap is sealed separately, achieving high qualified rate.

5. Each workstation is equipped with detection to make sure correctness and accuracy of assembling.

6. Main power comes from servo motor +indexing drive, which ensure high precision assembly.

7. PLC control system, touch screen HMI operation.

Properties

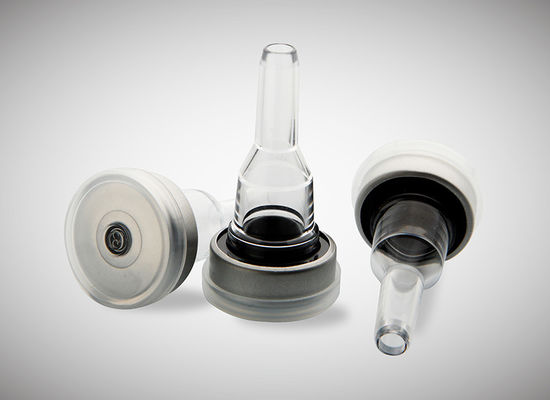

Applicable products	Aluminum-plastic caps&ports PC ports, spike ports and injection ports for non PVC soft tube IV bag
Production speed	8000-15000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	L3500×W3400×H1800(mm) Actual size varied with different production speed
Weight	About 3000kg
Operator	1set/person
