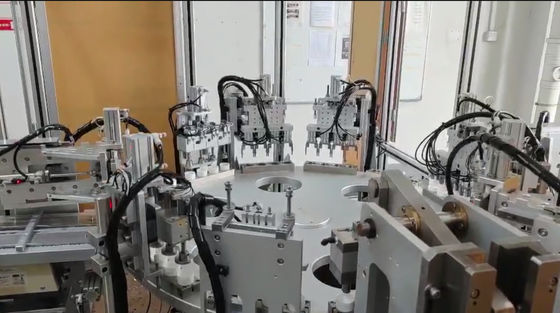

High-Performance Daily Necessities Assembly Machine For Pharmaceutical And Health Care Industry

Brand Name:	Sencan
Model Number:	SC-PT-435
MOQ:	1 set
Price:	Deliberation
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Size:

4200mm*3200mm*1900mm

Safety Features:

Safety Sensors And Emergency Stop Button

Language:

English/Chinese

Operator:

1 Person

Applicable Products:

Daily Necessities

Product Type:

Assembly Machine

Material:

Stainless Steel

Power Source:

AC380V ,50Hz

Error Alarm System:

Audible And Visual Alarm

Air Pressure:

0.6-0.8MPa

Efficiency Ratio:

Above 95%

Quality Ratio:

More Than 98%

Assembly Type:

Full-automatic

Packaging Details:

wooden case

Highlight:

High Performance Daily Necessities Assembly Machine

Pharmaceutical Daily Necessities Assembly Machine

Product Description

Features

1. Applied for automatic assembly of desiccant caps for pharmaceutical and health care use.

2. Automatic filling of granular and powder desiccant like molecular sieve and silica gel, as well as caps with desiccant capsules or cores insertion.

3. Automatically punch and cut sealing paper, reduce customers’ cost and improve rate of qualified products.

4. Sealing paper waste will be automatically collected to reduce labor of operators.

5. Equipped with desiccant supply bin which can protect desiccant from moisture and pollution.

6. Round shaped caps will be loaded by feeding device which is stable and fast.

7. Each assembling process is well checked, to be sure 100% qualification of qualified products.

8. Equipped with automatic counting function for production statistics.

9. Qualified and unqualified products are released from separate exits.

10. Main drive from servo motor + indexing drive, with stable running speed and high assembly accuracy.

11. PLC control system and touch screen, easy operation for operators.

12. Customized according to customer's specifications and capacity requirements.

13. Connect with injection molding machine, camera inspection system or other equipment to form an overall automatic production line.

Properties

Applicable products	desiccant cap, silica gel desiccant cap, safety cap, CRC cap
Production speed	1500-8500pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2000kg
Operator	3sets/2persons,recommend 1set/person
