Highly Customizable Euro Cap Assembly Machine For Different Production Demands PLC Control System

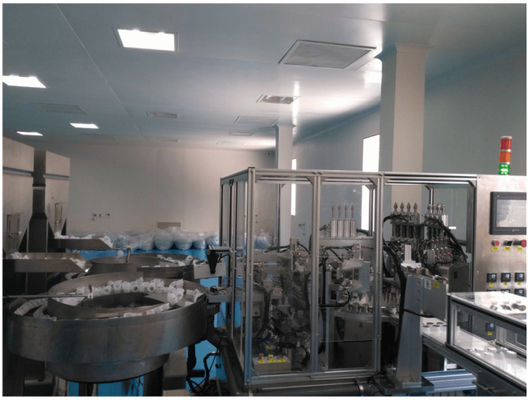

Large Image : Highly Customizable Euro Cap Assembly Machine For Different Production Demands PLC Control System

Product Details:

Place of Origin:	China
Brand Name:	Sencan
Certification:	CE
Model Number:	SC-PT-438

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Deliberation
Packaging Details:	wooden case
Delivery Time:	90 work days
Payment Terms:	T/T, L/C
Supply Ability:	3 sets per

Contact Now

Detailed Product Description

Application:	Beverage Industry	Operating Speed:	Adjustable
Active Force:	Servo Moter	Operator:	Single Or Double
Operating Method:	Turntable/mechanical	Main Drive:	Servo Motor And Indexing Disc
Capacity:	14000-15000pcs/h	Applicable Products:	Double Fold Cap
Cap Type:	Film Cap	Production Capacity:	4500-22000 Per/hour
Voltage:	220V	Power Supply:	220V/50Hz
Function:	Assembly Of Medical Cap Products
Highlight:	Highly Customizable Euro Cap Assembly Machine , 220V Euro Cap Assembly Machine

Features

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance

10. Highly customized according to customer's requirements, actual capacity and production demand.

Properties

Applicable products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
