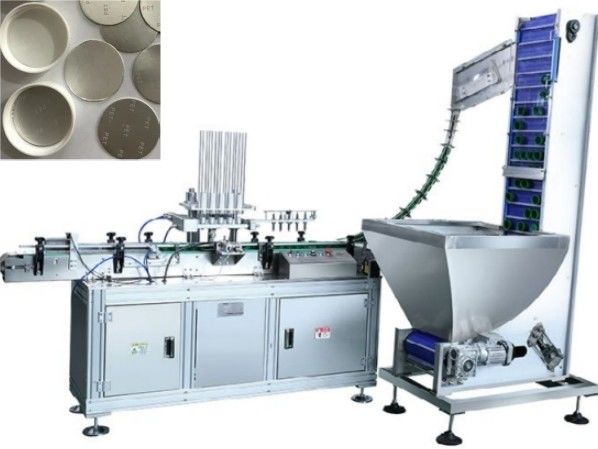

Mechanical Transmission for Smooth and Accurate Gasket Insertion with Cap Lining Machine

Equipment structure composition:
Automatic cap management mechanism: vibration cap management, the messy bottle cap arrangement output, and make all the bottle cap mouth facing up;
Bottle cap conveying mechanism: the sorted bottle caps are orderly and accurately conveyed to the gasket into the cap mechanism;
Gasket into the cap mechanism: gasket into the bottle cap, parsley into the gasket into the bottle cap action.
Gasket reverse piece, no piece of rejection mechanism: the cap is the reverse gasket or no gasket cap automatically rejected to ensure that all the caps are qualified products. (Optional) Glue dispensing mechanism: complete the glue dispensing action before the gasket is taken into the cap. (Optional device)

1,Alternative to manual work, automatically plug the gasket into the bottle cap, greatly improving work efficiency;
2,Gasket into the cap flat, fast, efficient, product safety and health;
3,Cap size is different, you can replace the turntable, gasket tube, suction cup, simple and convenient;
4,Capping machine adopts vibrating disk, with additional cap rejection function, so that the reverse cap automatically return to the cap machine, to ensure that all the discharged caps go upward into the conveyor belt.
5,Adopting mechanical transmission conveying and positioning mechanism to make the machine work smoothly and reliably, suitable for all kinds of bottle caps and aluminum foil gaskets with different specifications;
6, with finished products automatic scopolamine function, gaskets are not people cap or gaskets on the reverse side of the cap into the cap, detection device net will automatically reject unqualified cap to the inferior area, to ensure that the cap of the qualified rate. (Optional)
7,This machine is equipped with safety protection devices such as no bottle cap and no aluminum foil stopping, realizing humanized operation. (Optional)
8, with automatic counting function, you can set the number of bottle caps to reach the automatic shutdown, but also greatly improve the efficiency of the follow-up work.
9, the machine is our factory in strict accordance with national "GMP" standards and process requirements for the design and manufacture of fully automatic cap into the mat equipment.

Main Technical Parameters
