Optimize Production with Our High-Performance Euro Cap Assembly Machine

Large Image : Optimize Production with Our High-Performance Euro Cap Assembly Machine

Product Details:

Place of Origin:	China
Brand Name:	Sencan
Certification:	CE, ISO 9001
Model Number:	SC-TP-515

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate based on actual circumstances
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	L/C,T/T
Supply Ability:	3 sets

Contact Now

Detailed Product Description

Colour:	Stainless Steel Metallic Color	Product Type:	Assembly Machine
Operation Rate:	96%	Cable Size:	Three-phase Five-wire System
Assembly Type:	Automatic	Nature:	Automatic
Operator:	1set/person	Operation Interface:	Touch Screen
Material:	Stainless Steel	Power Supply:	220V/50Hz
Applicable Product:	Infusion Cap	Control:	PLC
Suitable Caps:	Euro-cap	Operating Rate:	96%

Features

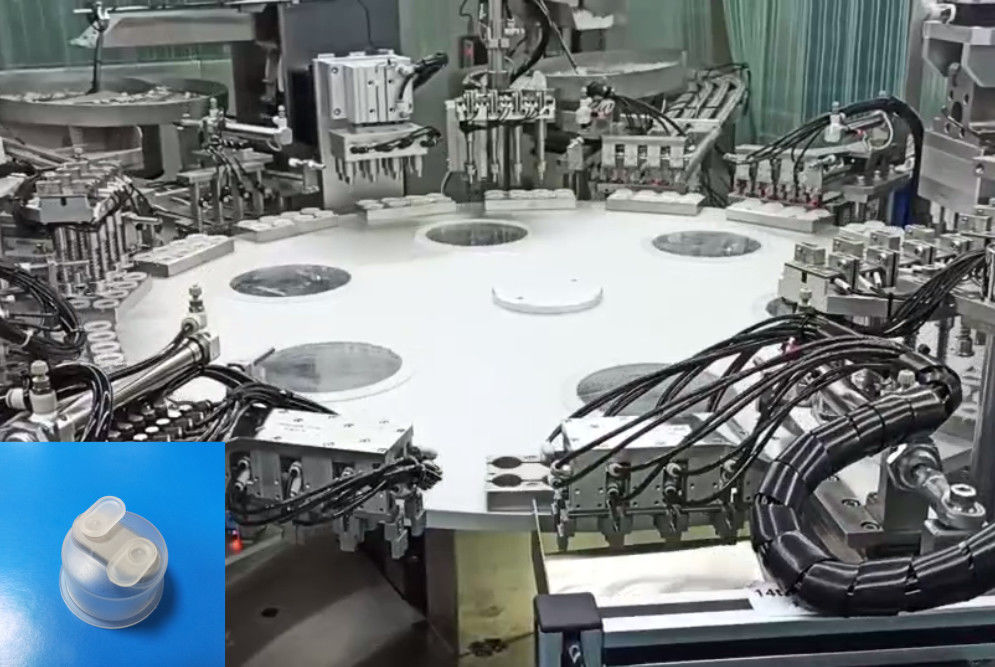

1. This machine is applied for automatic assembly of caps for plastic IV infusion bags and bottles.

2. Machine made of stainless steel + aluminum alloy, in compliance with ISO and GMP standards

3. Each workstation has independent driving source , convenient for daily maintenance.

4. The surface in contact with the product is polished to protect the product.

5. The inner cap is pressed by servo-linked rod structure system, with even and stable pressure each position each workstation, pressing quality of each cap could be guaranteed.

6. Each assemble process is followed with inspection function to make sure no defective products in qualified products.

7. PLC control system, human-machine interface operation. No high professional technical requirement for operator.

8. Main power composed of servo motor + indexing drive, high assembly precision and qualified rate.

9. Pneumatic power for shorter time of maintenance

10. Highly customized according to customer's requirements, actual capacity and production demand.

Properties

Applicable products	Loop pull cap, double pull cap, single fold closure, double fold cap, break caps
Production speed	3600-1400pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	Actual size varied with different production speed
Weight	About 2300kg
Operator	3sets/2persons,recommend 1set/person
