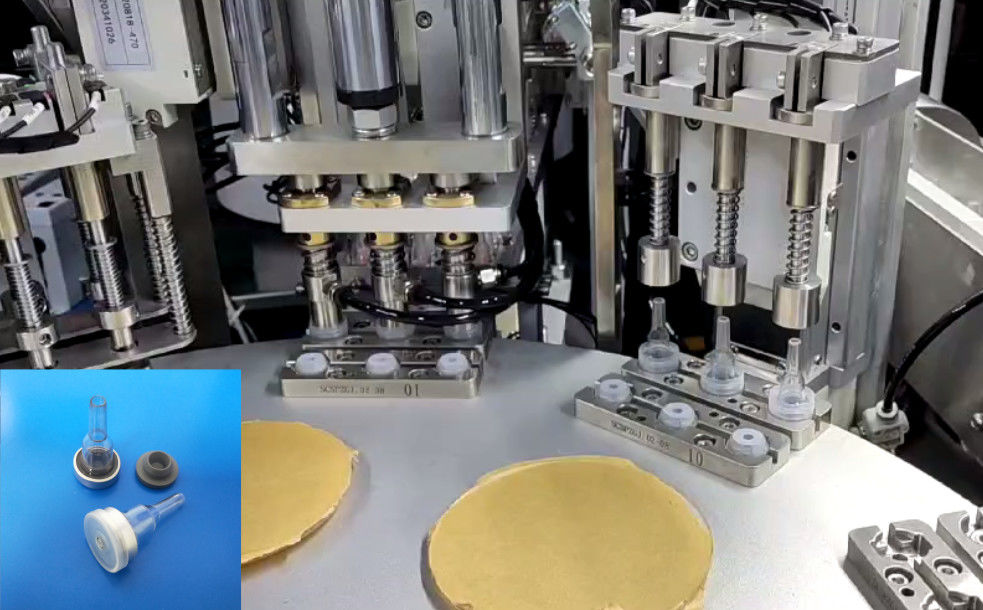

IV soft bag Spike Ports and Injection Ports Assembly Machine

Large Image : IV soft bag Spike Ports and Injection Ports Assembly Machine

Product Details:

Place of Origin:	China
Brand Name:	SENCAN
Certification:	CE, ISO9001
Model Number:	SC-TP-518

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiate according to the actual situation
Packaging Details:	Wooden case
Delivery Time:	90 days
Payment Terms:	T/T,L/C
Supply Ability:	3 sets

Contact Now

Detailed Product Description

Operator:	1 Set/person	Nature:	Automatic
Operation Type:	Turntable	Active Force:	Servo Moter
Main Power:	Servo Moter	Product Type:	Nasal Swab Assembly Machine
Operating Interface:	Touch Screen	Control System:	PLC
Operating System:	PLC Control	Product Model:	Medical Infusion Bottle Caps
Efficiency:	High	Qualified Rate:	99%
Certifications:	CE, ISO 9001

Features

1. Used for automatic assembly for spike ports and injection ports of non-PVC double tube soft bag, aluminum-plastic PC infusion ports, PP and polypropylene dosing plugs.

2. All materials of the equipment are made of stainless steel + aluminum alloy, in compliance with ISO and GMP pharmaceutical packaging requirements.

3. Material for aluminum plastic cap sealing is made of titanium alloy, surface mirror polished to ensure smooth and nice sealing quality.

4. Rotation of sealing knife is driven by gear, each cap is sealed separately, achieving high qualified rate.

5. Each workstation is equipped with detection to make sure correctness and accuracy of assembling.

6. Main power comes from servo motor +indexing drive, which ensure high precision assembly.

7. PLC control system, touch screen HMI operation.

Properties

Applicable products	Aluminum-plastic caps&ports PC ports, spike ports and injection ports for non PVC soft tube IV bag
Production speed	8000-15000pcs/hr (according to customer’s requirement)
Rate of qualified product	Above 99%
Rate of operation rate	Above 95%
Power source	AC380V,50Hz,4kw/hr
Dimension	L3500×W3400×H1800(mm) Actual size varied with different production speed
Weight	About 3000kg
Operator	1set/person
