Heli Cap Automatic Assembly Machine Air Pressure 0.6-0.8MPa

Brand Name:	SENCAN
Model Number:	SC-TP-652
MOQ:	1 set
Price:	Negotiate according to the actual situation
Payment Terms:	T/T,L/C
Supply Ability:	3 sets

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO9001

Configuration:

Heli Cap Assembly Machine

Function:

Cap Assembly

Material:

Stainless Steel

Air Pressure:

0.6-0.8MPa

Warranty:

1 Year

Operation Mode:

Touch Screen

Production Efficiency:

99%

Operating Speed:

Adjustable

Power Supply:

220V/50Hz

Cable Size:

Three-phase Five-wire System

Mechanism:

Servo

Bottle Height Range:

50-200mm

Cap Diameter Range:

10-30mm

Speed:

Adjustable

Packaging Details:

Wooden case

Highlight:

Heli cap Assembly Machine

Automatic Assembly Machine

Product Description

Features

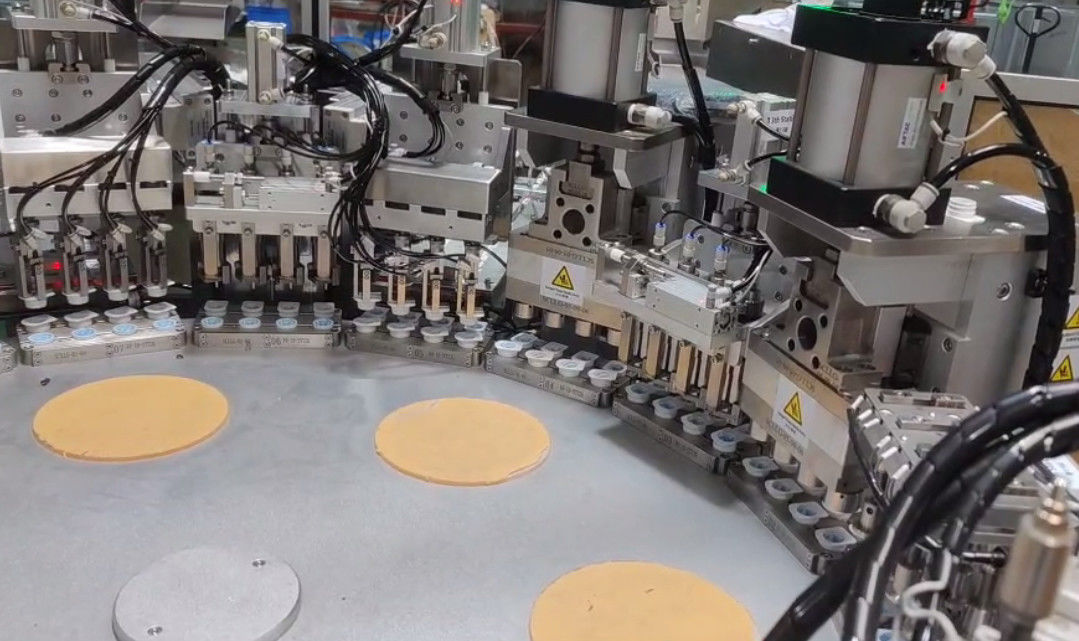

1. Turntable or loop production line on customer's actual capacity.
2. Main power comes from servo motor + reducer, which makes intermittent motion providing static fixtures for accurate assembly during processing, achieving high rate of qualified product.
3. Equipped with automatic detection function, following each assembly process, to achieve 100% qualified products.
4. All materials are made of stainless steel and aluminum alloy, in compliance with GMP requirements.
5. Equipped with automatic orientation function, avoid jam between screw and teeth, reduce defection during insertion, ensure correctness of assembly.
6. Torque test can be added inline.
7. Automatic pressing or tightening can be realized according to the product structure.
8. PLC control system, touch screen human-machine interface operation.
9. Simple maintenance and convenient operation. Low requirement for Operator's technical ability. Spare parts replacement time short.

Properties

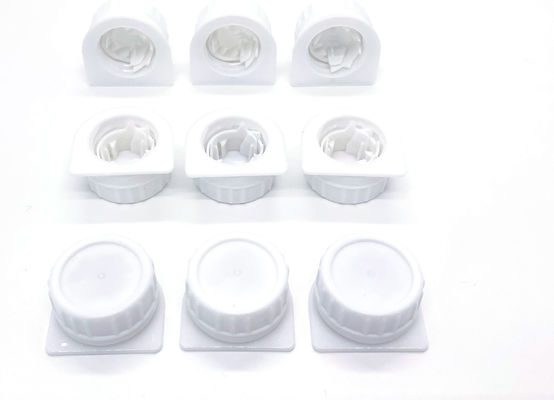

Applicable products: Helicap, 3 parts caps closures requiring orientation and screwing assembly

Production speed: 3000-12000pcs/hr (according to customer’s requirement)

Rate of qualified product: Above 99%(depends on raw material quality)

Rate of operation rate: Above 95%

Power source: AC380V, 50Hz, 4kw/hr

Dimension: Actual size varied with different production speed

Weight: About 2850kg

Operator: 1set/person
